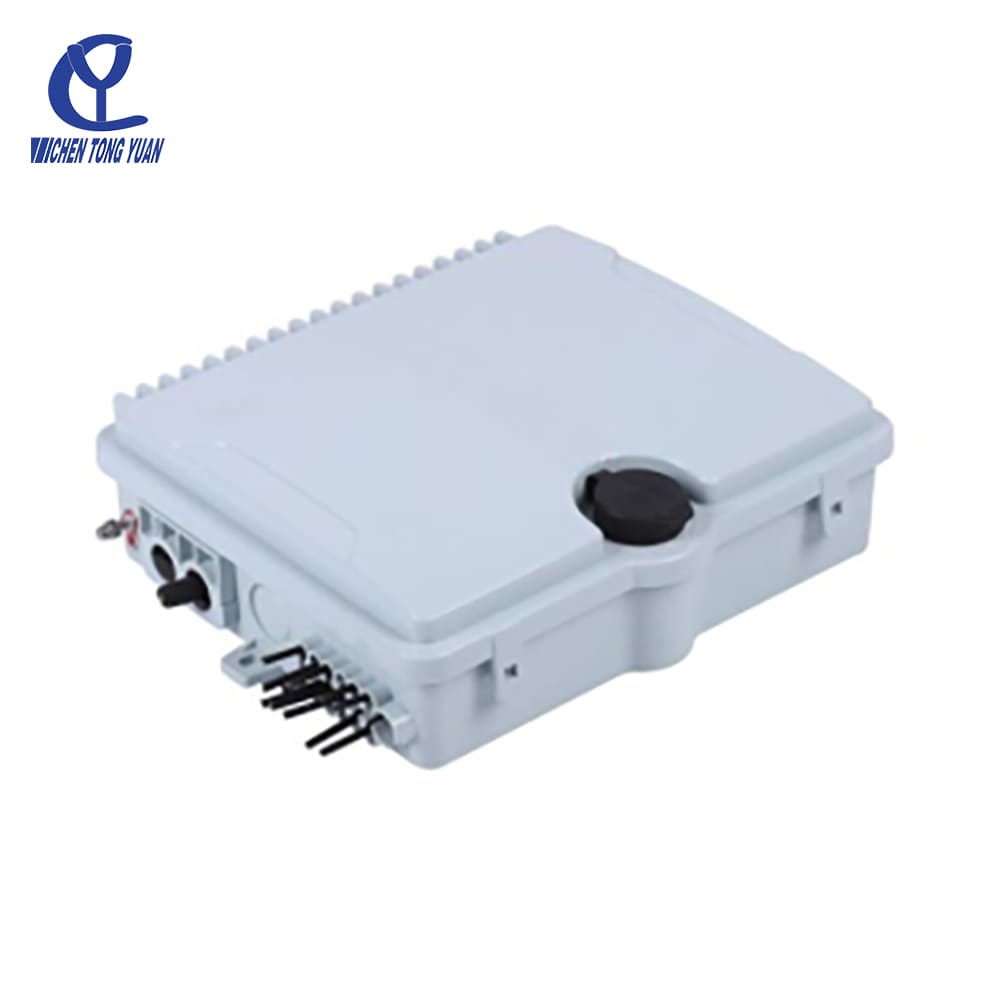

The Fiber Optical Terminal Box CY-T110-B is designed for FTTH applications, serving as a termination point between feeder cable and drop cable. It supports fiber splicing, splitting, storage and management for up to 12 Cores, with a waterproof structure suitable for both indoor and outdoor environments.
CY-T110-B
Cytech
Product Description
The Fiber Optical Terminal Box CY-T110-B is used in FTTH networks to connect feeder cable with drop cable. It provides organized fiber management, ensuring stable connections while supporting splicing, splitting and storage functions within a compact enclosure.
The box is made of strong engineering plastic, ensuring durability and long-term use.
With a sealed structure and special-shaped lock, the box performs well in different environments.
The lock design allows convenient access for installation and maintenance.
Separates fusion splicing and termination areas, making operation more efficient.
Supports installation of one 1×12 tube type splitter for fiber distribution.
| Model No. | CY-T110-B | Color | Black, Grey White.. |
| Capacity | 12cores | Protection Level | IP55 |
| Material | PC+ABS, ABS | Flame retardant performance | Non-flame retardant |

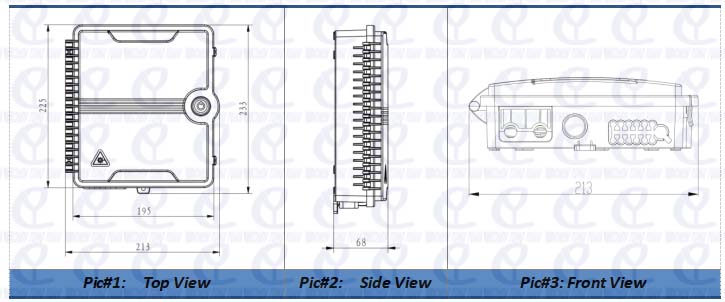

| Dimension(L*W*D,MM) | 233*213*68 | Splitter | Can be with 1x1:8 Tube Type Splitter |

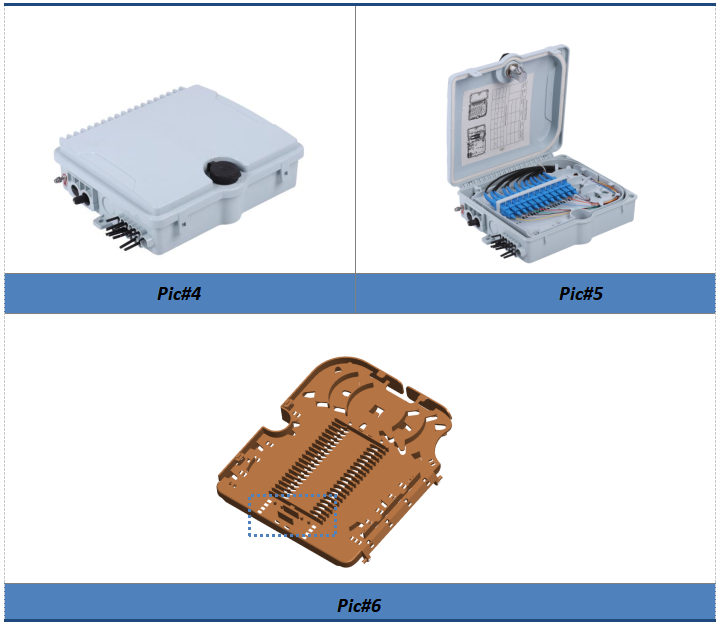

1.With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments (Pic#4 for details);

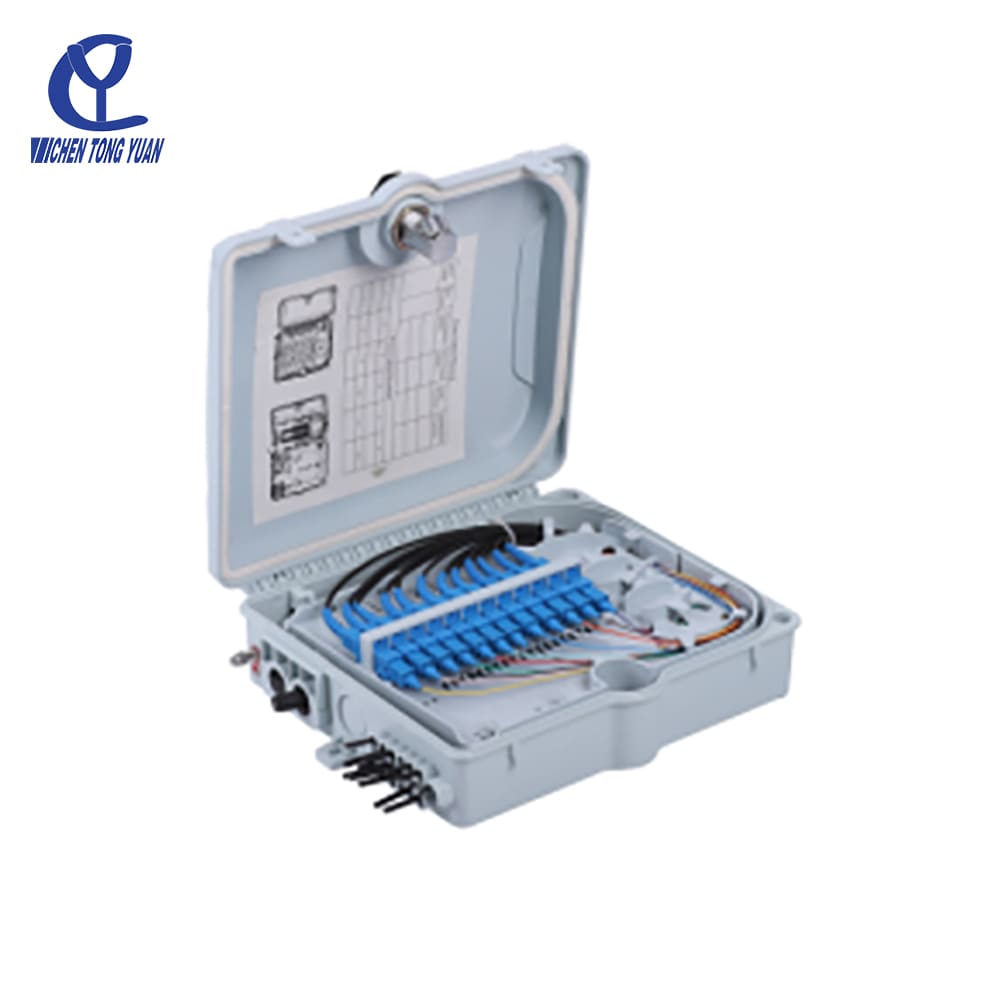

2.With double-page design, the box can be installed and maintained easily, the fusion and termination are completely separated; ( Pic#5 for details);
2.The drop leaf can be installed 1 pcs of 1*12 Tube Type Splitter ( Pic#6 for details).
Used as a connection point between feeder cable and drop cable.
Supports fiber splicing and signal distribution within the network.
Provides organized space for fiber routing and storage.
Designed to meet the needs of up to 12 users in FTTH systems.
Carton packing: 20 sets/carton
Carton size: 455*495*390mm
Weight: 16kg/carton box
