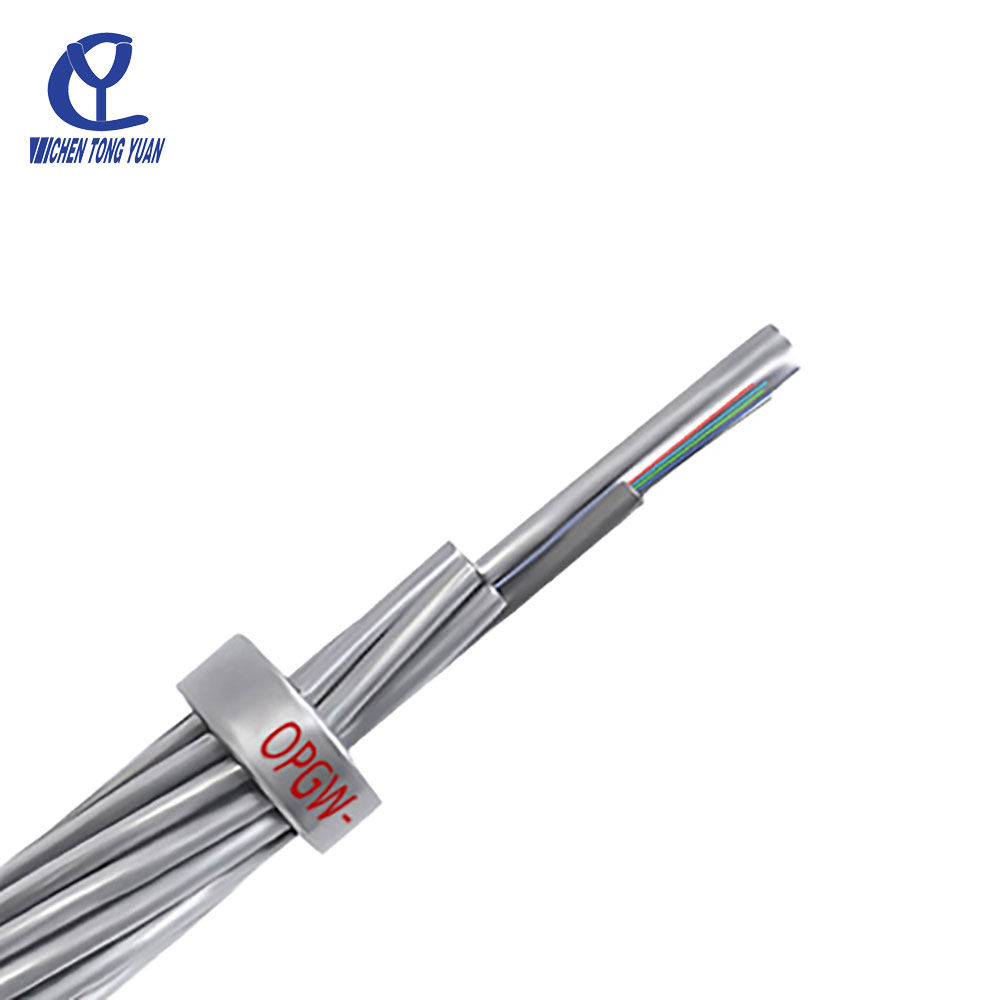

Optical Fiber Composite Overhead Ground Cable OPGW(layer Stranded)

Product introduction

OPGW optical cable, also known as fiber optic composite overhead ground wire, places optical fibers in the ground wire of overhead high-voltage transmission lines to form a fiber optic communication network on the transmission lines. This structural form has dual functions of spacing between ground wires and communication.

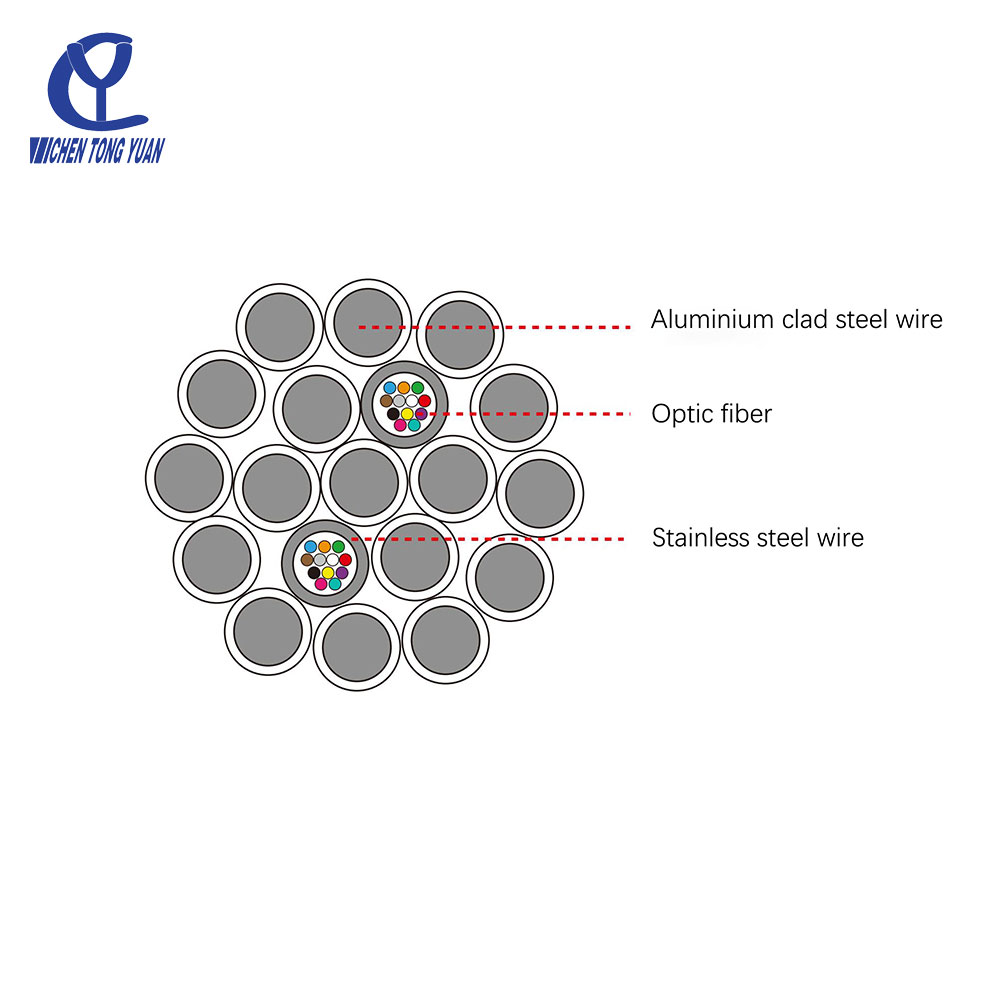

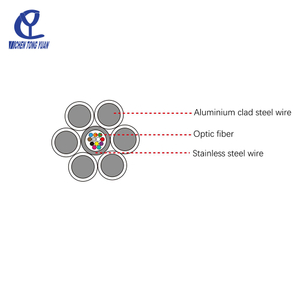

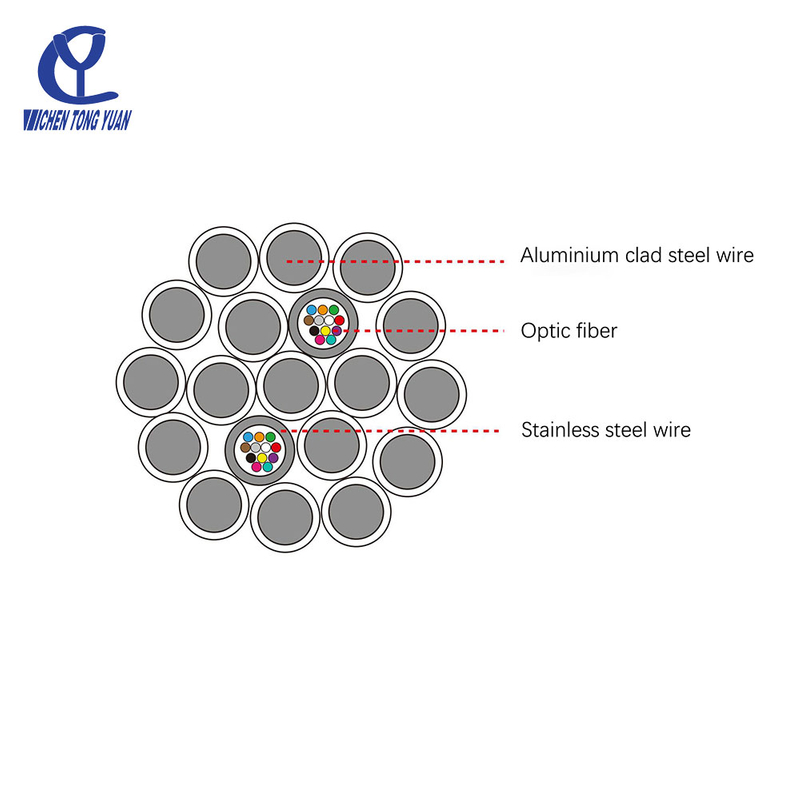

The layer twisted OPGW optical cable adopts a design where stainless steel tube fiber optic units are twisted together with other metal wires at the same time. The fiber optic units are located on the second layer and generate larger and more stable tensile residual length through twisting.

Product Feature

•Adopting advanced stainless steel tube production technology, the tube is filled with water-resistant compounds, which can effectively protect the optical fiber;

•Combining the dual functions of ground wire and communication optical cable, eliminating the huge cost of repeated installation and maintenance;

•Installed on the top of power overhead line towers, without considering factors such as optimal hanging points and electrical corrosion;

•During the renovation process of the old line, the outer diameter and tensile strength of the optical cable are better matched than pulling another ground wire;

•Large transmission capacity, high communication quality, good reliability, and superior mechanical and electrical performance.

Product Standard:

Q/GDW761 Standard types technical specification for optical fiber composite overhead ground wires(OPGW)

DL/T832 Optical fiber composite overhead ground wires

Application characteristics‌

Layer twisted OPGW fiber optic cables are suitable for applications that require greater stretch allowance, and their structure makes the cable more stable when subjected to high loads and large spans.

Product Parameter

Application scenarios of OPGW optical cable

•Power system: widely used in power transmission and distribution systems for real-time monitoring of the working status of power lines, improving the reliability and safety of the power grid.

•Communication system: used for data transmission and communication functions, meeting the needs of high-speed data transmission.

•Railway system: used for communication and signal transmission to ensure the normal operation and safety of the railway system.

•Oil and gas industry: used for pipeline monitoring systems to monitor real-time parameters such as temperature, pressure, and flow rate of pipelines, improving the safety and reliability of pipeline operation.

With the continuous development of technology, OPGW optical cables have broad application prospects in the future. Firstly, with the continuous updating and upgrading of the power network, reliable communication transmission and monitoring will become increasingly important. Fiber optic cables, as a reliable communication medium, will play a greater role in the power system.

OPGW fiber optic cables can be used not only in power systems, but also in other industries such as transportation and industry.
