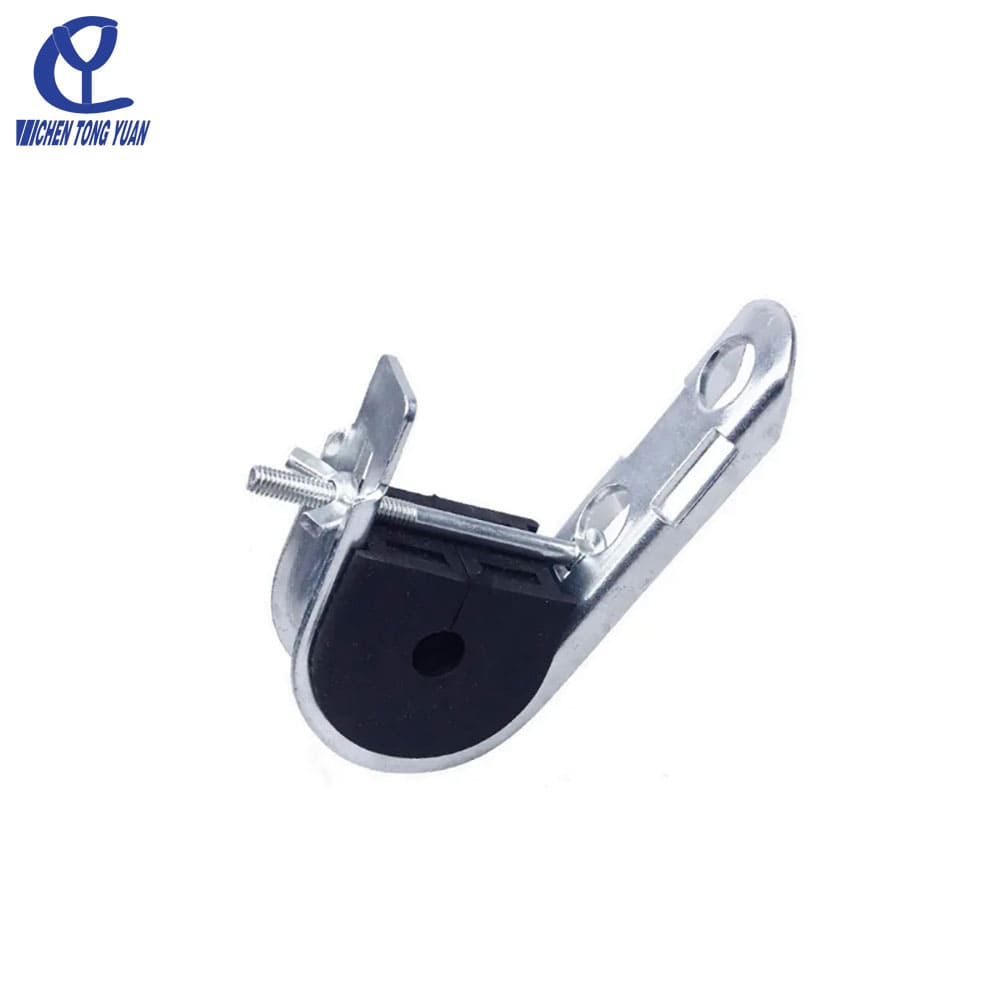

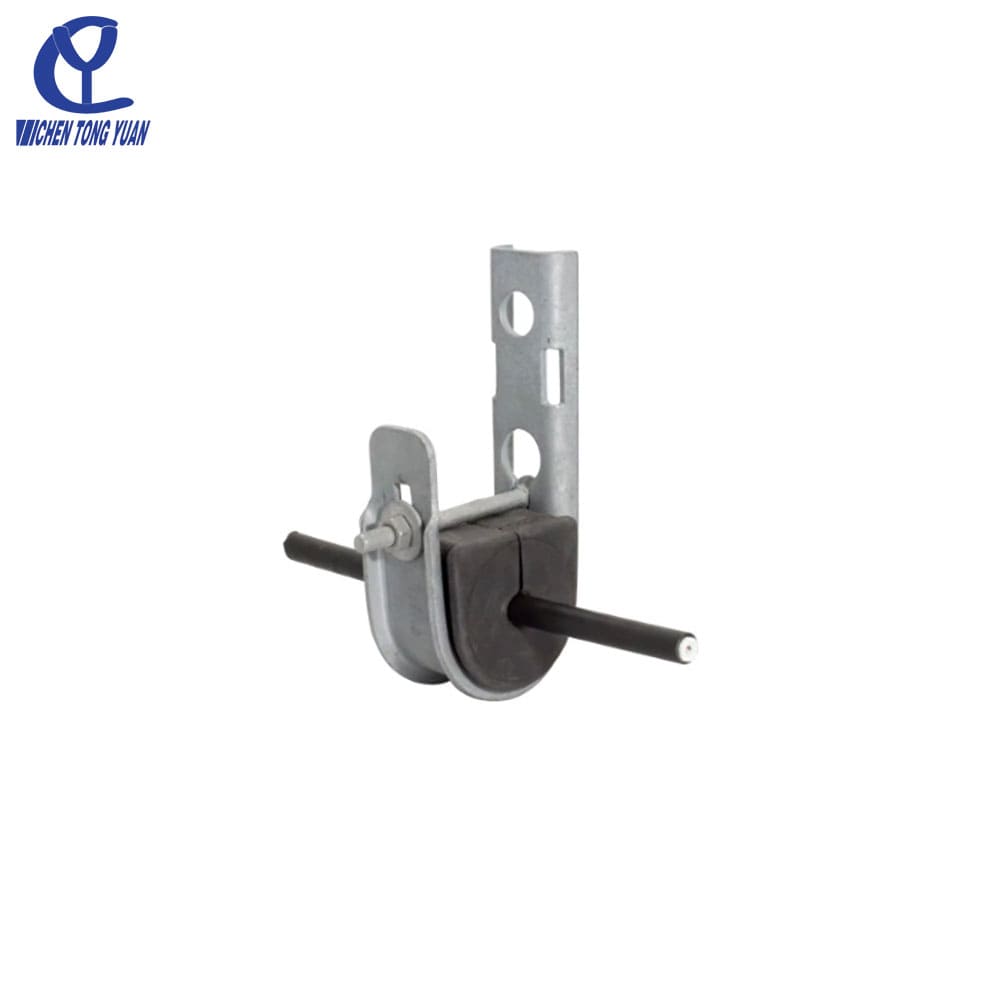

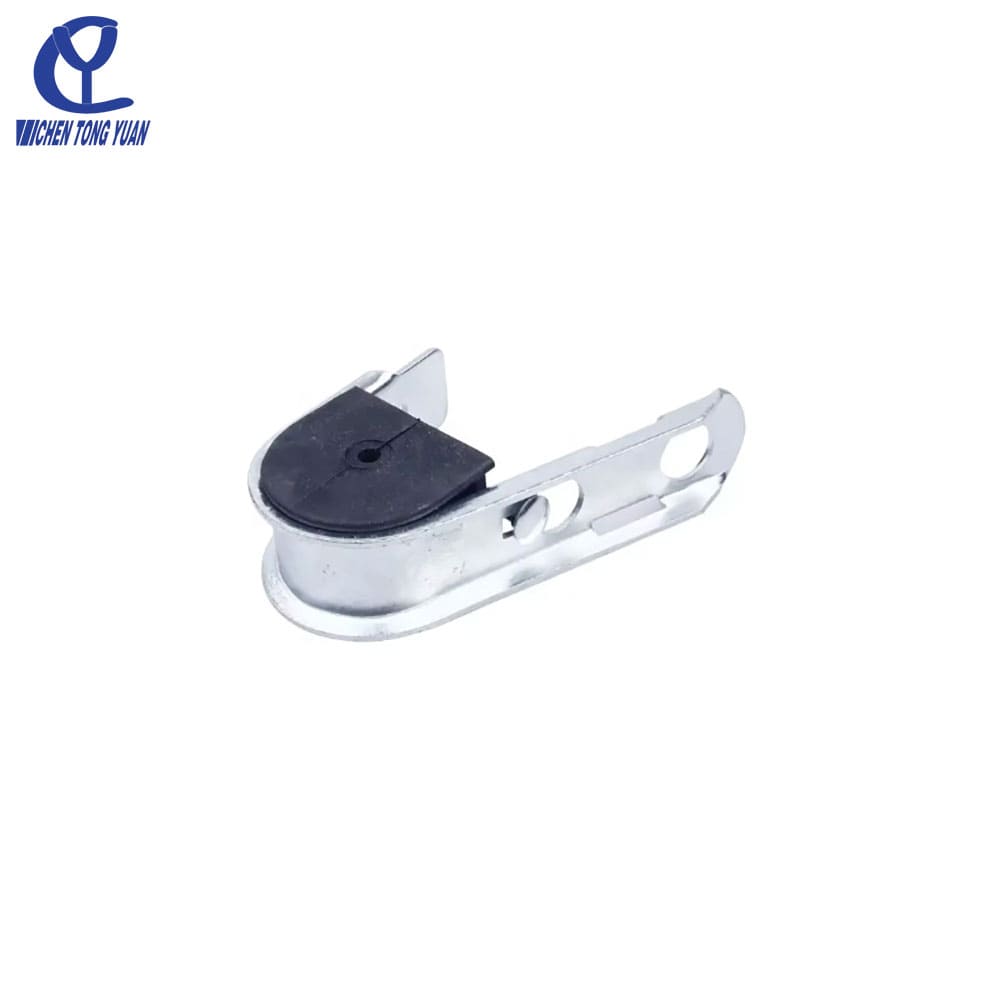

The fiber optic cable fittings suspension clamp is designed for suspending ADSS round optical fiber cable in overhead transmission line construction. With a J hook structure and internal plastic insert, it holds the cable securely without damage and supports flexible installation on poles, hooks, and brackets.
Cytech
Product Description
The fiber optic cable fittings suspension clamp is used for supporting and suspending ADSS optical fiber cables on transmission lines, ensuring stable positioning and protection during operation.
Supports ADSS cables from 5mm to 20mm.
Can be installed within seconds without complex tools.
Allows direct cable placement and flexible routing.
Plastic insert securely holds cable without causing damage.
Can be installed using bolts, stainless steel bands or brackets.
Product Model | Cable Size ,mm | MBL,mm | Weight,KG | Material |
HC 5-8 | 5-8 | 4 | 0.19 | Stainless steel rubber insert |
HC 8-12 | 8-12 | 4 | 0.19 | |
HC 10-15 | 10-15 | 4 | 0.19 | |
HC 15-20 | 15-20 | 4 | 0.19 |
Used for supporting round optical fiber cables on poles.
Ensures stable cable routing in overhead lines.
Suitable for fiber optic network deployment.
Compatible with banding and hook bolt installation.
