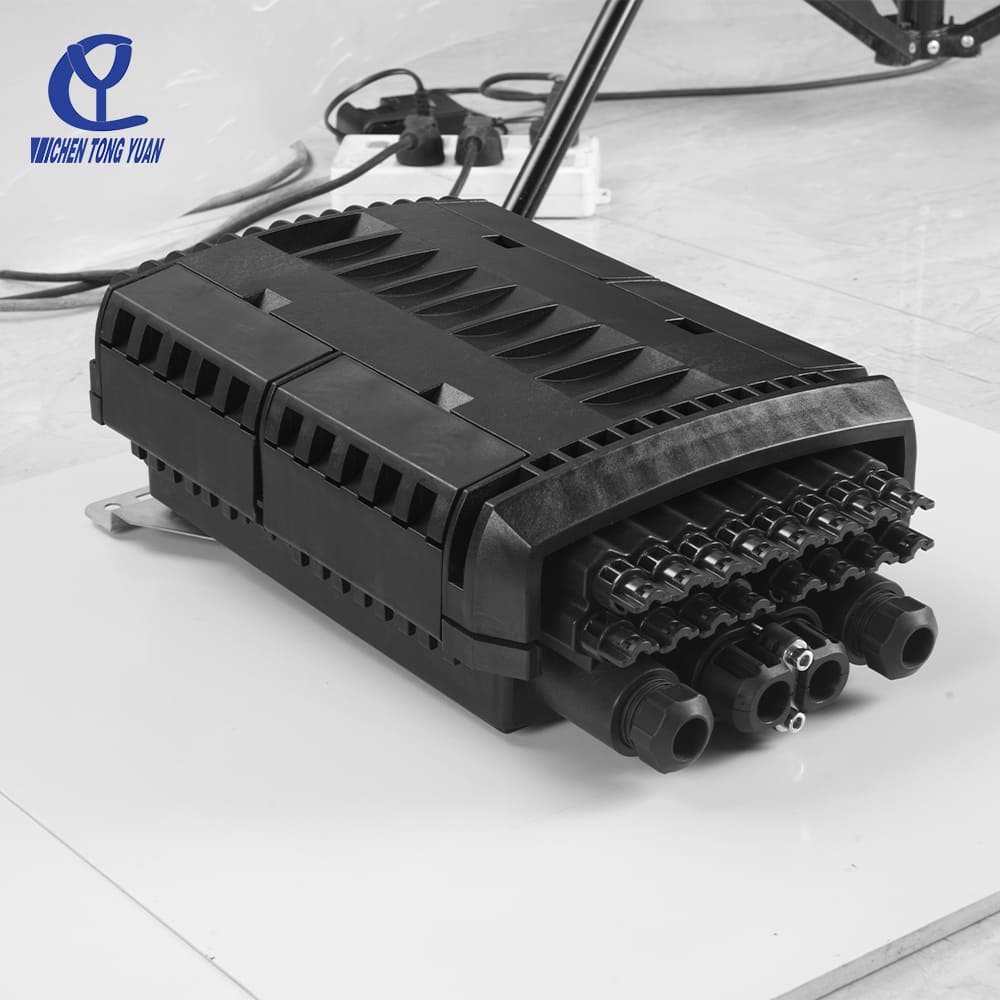

FTTH Fiber Optic Splice Closure 4in 16 Out

Fiber Optic Splice Closure is a sealing device used to protect fiber optic splice points, commonly found in telecommunications and data transmission networks. Its core function is to provide a safe environment for fiber fusion splicing or mechanical splicing, preventing mechanical damage (such as pulling, squeezing) and environmental factors (such as moisture, dust, temperature fluctuations) from affecting signal transmission.

Model:
CY-T088-A
Brand:
Cytech


Availability:



Inquire

Product Description

Product Description

Product description

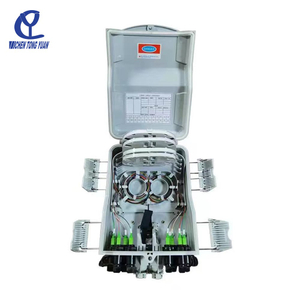

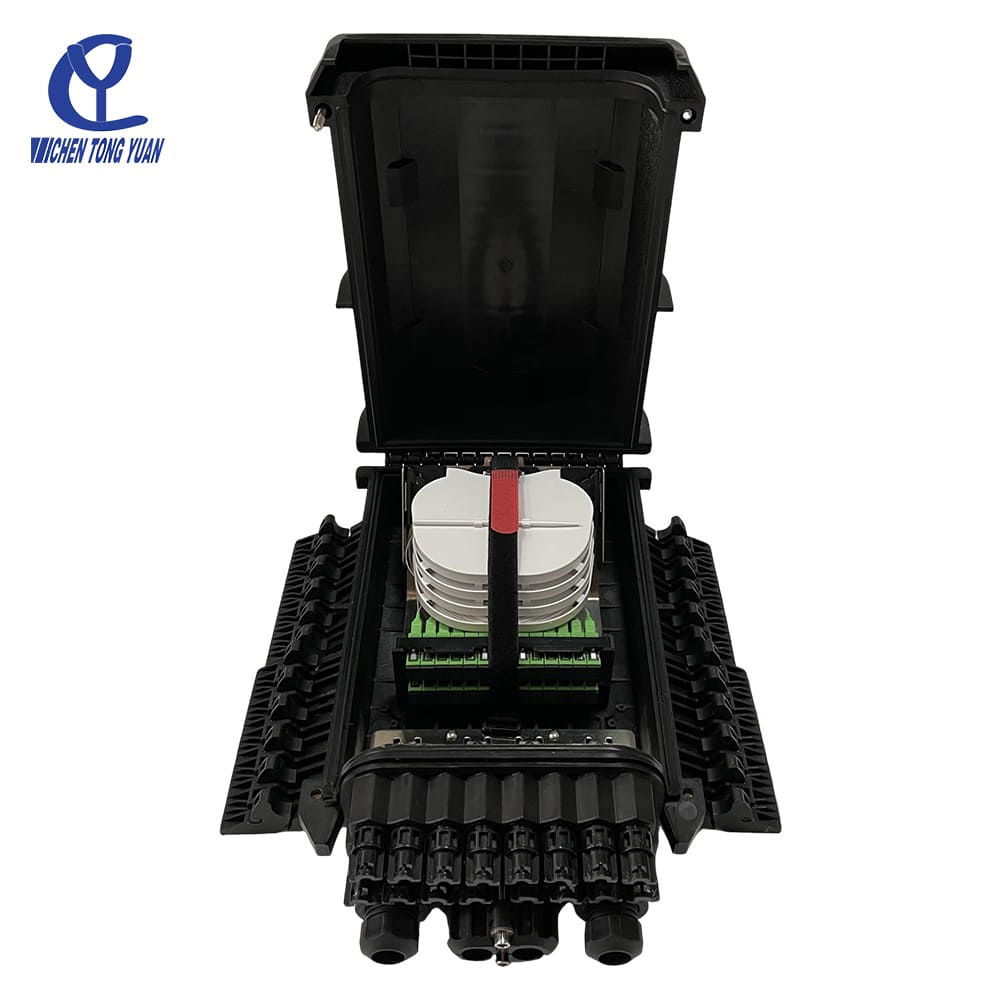

The Model CY-T088-A Fiber Optic Splice Closure is mainly used for optical fiber connection and protection. This kind of box is suitable for the connection of overhead, pipe and buried straight and branch.The box body and base are sealed with hoops and rubber. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure. The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.The product can be opened again and re us ed after installation

Product parameter

Model No.	CY-T088-A	Color	Black
Capacity	16 cores	Protection Level	IP68
Material	PP+Glass Fiber	Flame retardant performance	Non-flame retardant
*Dimension(LWD,MM)*	380243130	Splitter	Can be with 2x1:8 tube splitter

Product Feature

·The body is made of high quality engineering plastic with good strength；

·The box can be opened easily and has good water-proof performance, suitable for outdoor natural environments

·With the independent rubber sealing plug for drop cable, better waterproof performance

·With independent design, the box can be installed and maintained easily, the fusion and termination are completely separated；

·The splice tray can be installed 2 pcs of 1*8 tube splitter ；

·With Pole mounted accessories, couple of metal belt(can be optional).

Fiber optic splice clousure Installation

Step 1: Prepare the Tools and Materials

Gather all necessary tools and materials, including the fiber optic splice closure, fiber optic cables, splicing machine, cable strippers, cleaning supplies (alcohol wipes), heat shrink tubing, and cable ties.

Step 2: Strip the Fiber Optic Cable

Use a cable stripper to carefully remove the outer jacket of the fiber optic cable, exposing the inner fibers and strength members. Be cautious not to damage the delicate fibers.

Step 3: Clean and Prepare the Fibers

Clean the exposed fibers with alcohol wipes to remove any dirt or grease. Then, strip the coating off the individual fibers using a fiber stripper.

Step 4: Splice the Fibers

Use a fusion splicer to align and join the fibers from both cables. Ensure the splice is clean and secure. Protect the splice point with heat shrink tubing.

Step 5: Place the Splice into the Closure

Carefully place the spliced fibers into the splice tray inside the closure. Organize the fibers neatly to avoid bending or breaking them.

Step 6: Seal the Closure

Close the splice closure and ensure it is properly sealed to protect the fibers from moisture, dust, and other environmental factors. Use cable ties to secure the cables at the entry and exit points.

Step 7: Test the Connection

Use an optical time-domain reflectometer (OTDR) or power meter to test the connection and ensure the splice is functioning correctly.

Step 8: Install the Closure at the Desired Location

Mount the splice closure at the designated location, such as a pole, wall, or underground enclosure. Ensure it is securely fastened and protected from environmental hazards.
