The MPO MTP OS2 patch cord is a high-density single mode fiber solution designed for long distance optical connectivity. It supports stable transmission in backbone and interconnection systems where low loss and reliable performance are required.
Cytech
Product Description

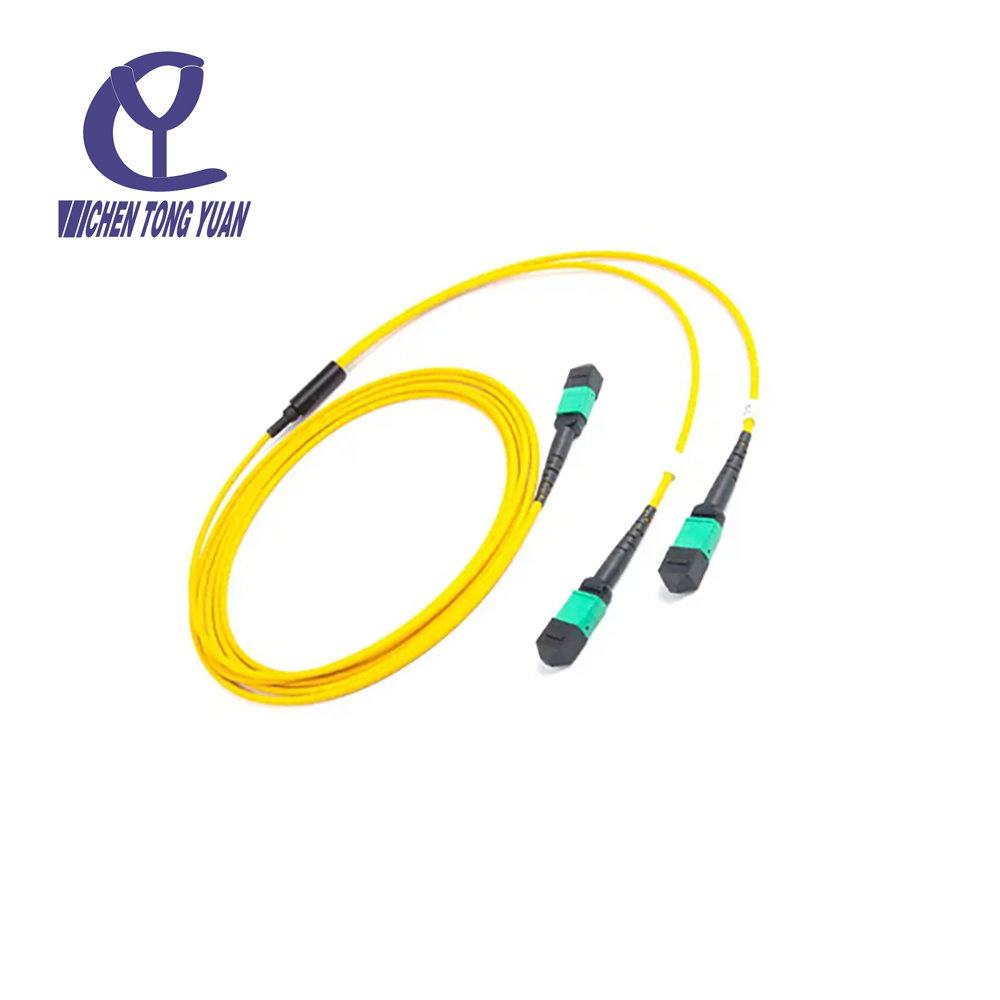

The MPO MTP OS2 patch cord is a single mode high-density fiber cable designed for long distance optical transmission, providing stable and low-loss connectivity for data center backbone networks, telecom infrastructure, and high-speed optical communication systems.
The MPO MTP OS2 patch cord is built for stable single mode performance in long distance fiber links.
It delivers efficient optical transmission with low insertion loss for demanding network systems.
The armored structure helps protect the cable from physical damage in high-fiber environments.
It reduces installation time and supports quick reconfiguration in data center and telecom projects.
| Fiber Type | SM | SM | MM | MM |
| ( Low-Loss) | (Low-Loss) | |||
| Insertion Typical（dB) | 0.35 | 0.1 | 0.35 | 0.1 |
| Insertion Maximum(dB) | 0.7 | 0.35 | 0.6 | 0.35 |
| Return Loss(dB) | MM≥35、 UPC≥50、 APC≥55 | |||
| Male/Female | Male:with Pins；Female:without Pins | |||
| Repeatability(dB) | ≤0.2 / 500 Times | |||
| Operating Temperature(℃） | -40~+85 | |||
It is used for high-density single mode connections in modern data centers.
It supports reliable optical links for storage systems.
It provides stable connectivity between network devices.
It is suitable for backbone transmission and inter-building connections.
It works with emerging high-speed optical protocols.
