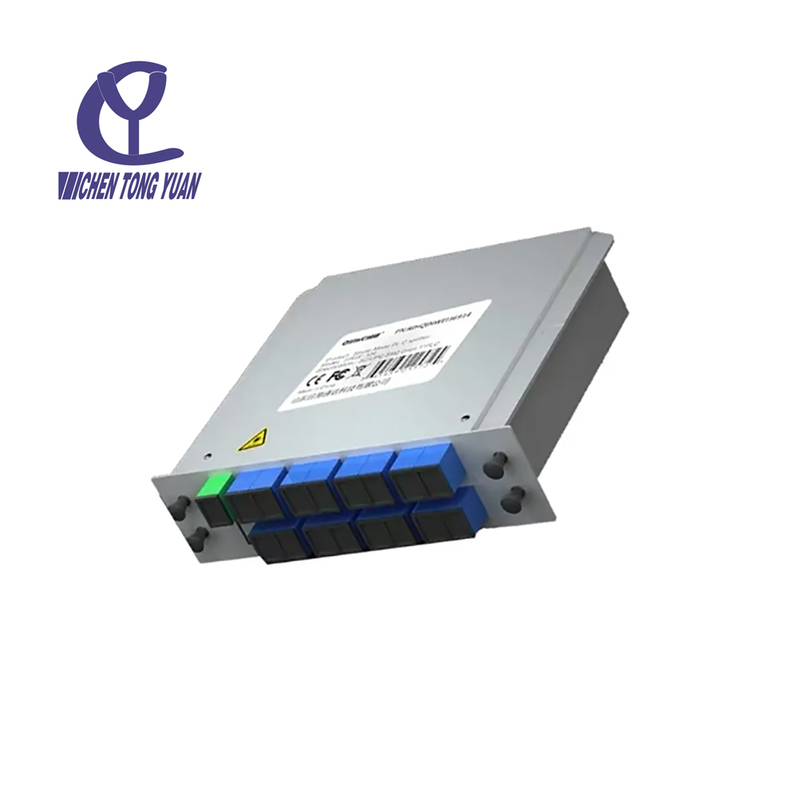

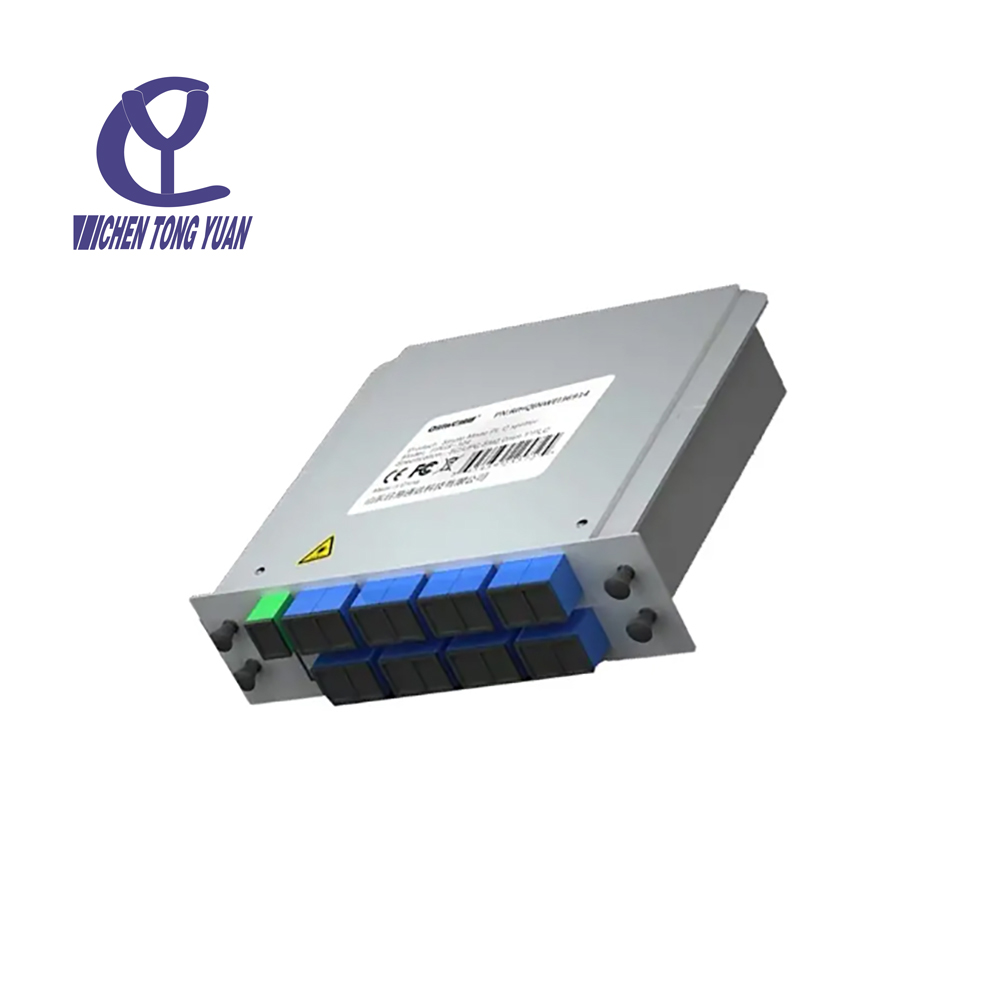

The Cassette PLC Splitter is a high-density fiber optic splitter designed for ODF systems and central office networks. It provides scalable optical distribution with stable performance for backbone and aggregation layers.
Cytech
Product Description

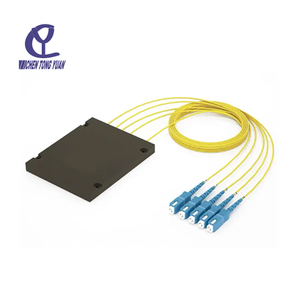

The ABS Module Splitter is used in fiber distribution systems to split optical signals efficiently. It supports stable transmission, modular deployment, and reliable operation in access and distribution network environments.
Designed for ODF rack-mounted installation.
Supports large-scale fiber integration.
Ensures stable optical transmission.
Suitable for network expansion systems.
Stable performance in telecom environments.
| 1xN PLC Splitter Specification | |||||||
| Operating Wavelength(nm) | 1260~1650 | ||||||
| Fiber Type | G657A1 or as customers' order | ||||||
| Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Insertion Loss (dB) | 3.8 | 7.1 | 10.5 | 13.5 | 16.5 | 20.5 | 23.8 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Dependent Loss (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Return Loss (dB) | 55/50 | ||||||
| Operating Temperature | -40~+85 | ||||||
| Directivity (dB) | ≥ 55 | ||||||
| Storage Temperature | -40~+85 | ||||||
| 2xN PLC Splitter Specification | |||||||
| Operating Wavelength(nm) | 1260~1650 | ||||||
| Fiber Type | G657A1 or as customers' order | ||||||
| Port Configuration | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 |
| Insertion Loss (dB) | 4 | 7.6 | 11 | 14.4 | 17.5 | 21 | 24.5 |
| Loss Uniformity (dB) | 0.6 | 1 | 1.2 | 1.5 | 1.8 | 2.2 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.35 | 0.4 | 0.4 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Dependent Loss (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Return Loss dB) | 55/50 | ||||||
| Operating Temperature | -40~+85 | ||||||
| Directivity (dB) | ≥ 55 | ||||||
| Storage Temperature | -40~+85 | ||||||
Used in optical distribution frames.
Supports high-density fiber connectivity.
Used in core network infrastructure.
Applies to central fiber hubs.
Used in centralized optical distribution.
