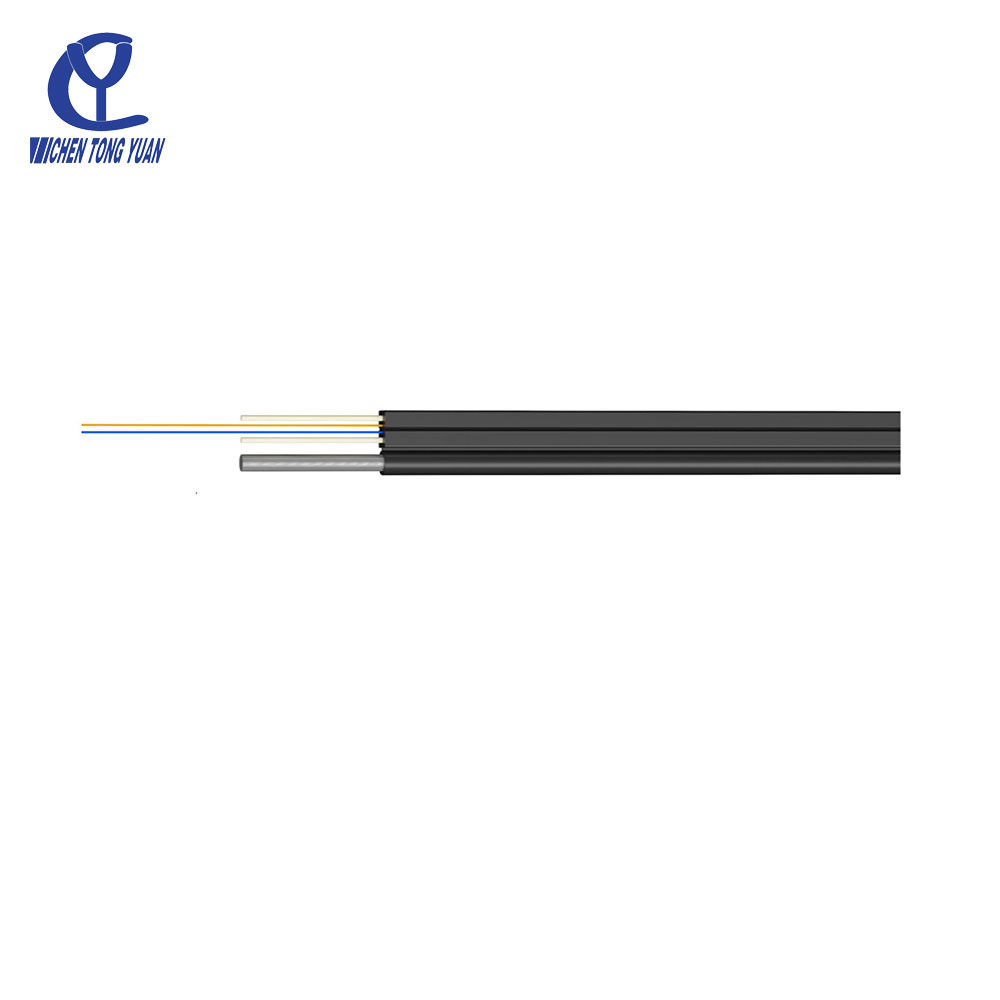

FTTH Drop Cable, Single Mode, 2 Fibers GJYXFCH

FTTH drop cable vedio

Product Description

GJYXFCH FTTH drop cable is a compact, flexible, and flame-retardant cable designed for indoor Fiber-to-the-Home (FTTH) installations. It features tight-buffered fibers and aramid yarn reinforcement, ensuring easy deployment, durability, and reliable high-speed connectivity in residential or building settings.

GJYXFCH FTTH drop cable Feature

•Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

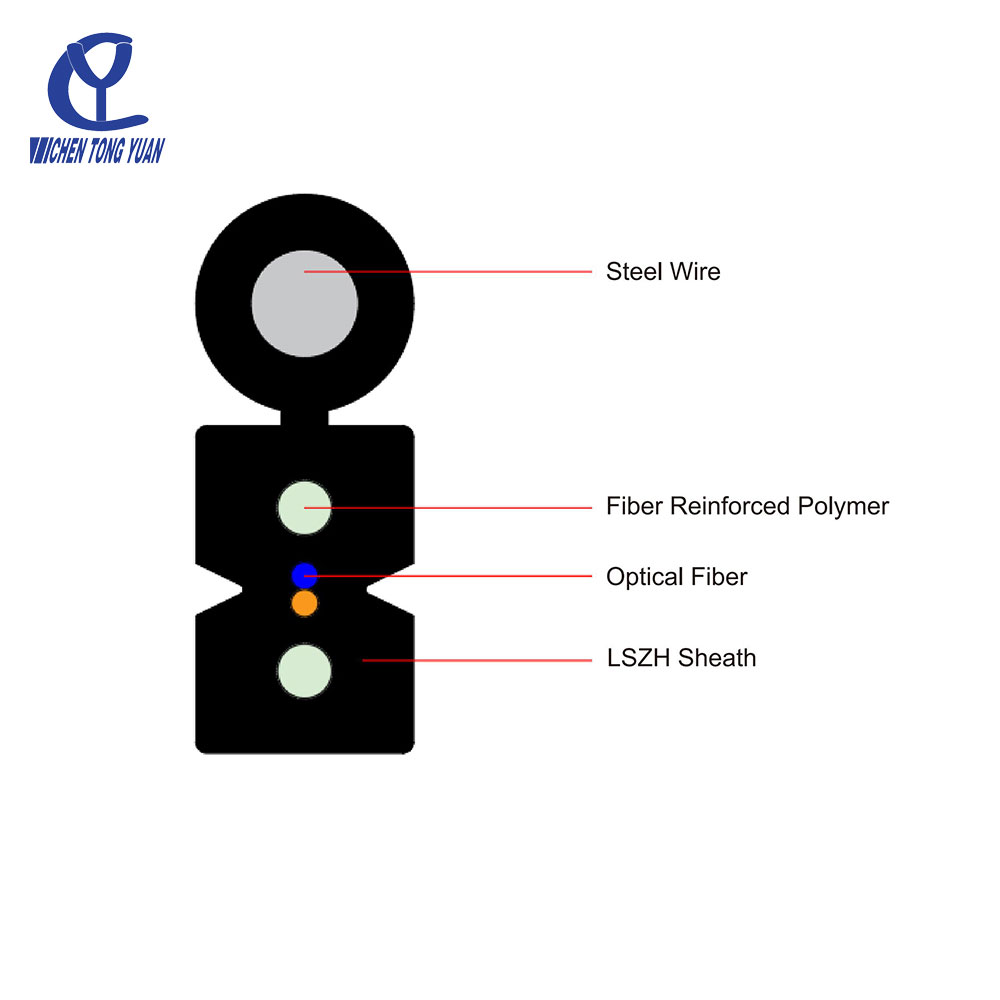

•Two parallel steel wire strength members ensure good performance of crush resistance to protect the fiber;

•Simple structure,light weight and high practicability;

•Novel flute design,easily strip and splice,simplify the installation and maintenance;

•Low smoke,zero halogen and flame retardant sheath;

GJYXFCH FTTH drop cable Performance

Applications: Access network, fiber to the home(FTTH);

Laying method:Indoor integrated wiring;

Working temperature:-20℃~+60℃；

Bend Radius: Static 20mm,

                      Dynamic:40mm.

Product Standard

YD/T 1997.1-2022 Drop optical fibre cables for telecommunication Part1:Bow-type optical fibre cables

GJYXFCH FTTH drop Cable Parameter

Document Download

GJYXFCH-G.657A2 FTTH drop cable.pdf

The installation and maintenance of FTTH drop cable mainly include the following key points

Installation requirements:

(1) When laying the FTTH drop cable, it should be kept straight, avoiding twisting and crossing, and should not be subjected to external compression or operational damage.

(2) At corners or bends, the FTTH drop cable should have a certain curvature to ensure its bending radius, and be protected with sleeves or other protective measures to prevent the cable from being damaged.

(3) The laying of FTTH drop cable should fully consider safety requirements such as fire prevention, rodent prevention, and compression prevention to ensure the long-term stable operation of the cables.

(4) For important users or scenarios with special requirements, appropriate protection methods should be selected according to the actual situation to enhance the reliability and safety of the FTTH drop cable.

(5) During the laying process of FTTH drop cable, professional cable laying tools and brackets should be used to avoid entanglement or unnecessary tension on the cables. At the same time, attention should be paid to the tensile strength and bending radius of the cables.

Maintenance requirements:

(1) Regular preventive maintenance should be carried out to check whether the outer skin, joints, and connectors of the FTTH drop cable are intact, and whether there are signs of wear, aging, or damage. Problems should be detected and dealt with in a timely manner to prevent small problems from escalating into major failures.

(2) Establish maintenance records, detailing the time, content, results, etc. of each maintenance to facilitate subsequent analysis and optimization of maintenance strategies.

(3) During the maintenance process, professional techniques and tools should be used to avoid non professionals operating on their own, ensuring the safety and effectiveness of the maintenance work.

(4) According to the environmental conditions of the FTTH drop cable, corresponding maintenance measures should be taken, such as strengthening inspections, moisture prevention, dust prevention, etc., to ensure the long-term stable operation of the optical cable.

FTTH drop cable has a wide range of applications and significant advantages in fiber optic access technology

Its application is mainly reflected in the following aspects:

(1) Fiber to the Home (FTTH) project:

FTTH drop cable, with their lightweight, high flexibility, and convenient installation characteristics, have become the ideal choice for FTTH projects. It can easily adapt to various complex indoor wiring conditions, such as a 20mm bending radius and withstand lateral pressure from human trampling.

(2) Indoor cabling:

FTTH drop cable also play an important role in indoor cabling. Its characteristics of easy bending, softness, and tensile strength make it very convenient to use in narrow areas such as corners of the wall. At the same time, its advantages of fast transmission speed, large bandwidth, and strong anti-interference ability also make it an ideal choice for introducing optical cables into buildings.

(3) Multiple scene adaptation:

Whether it is vertical and horizontal wiring inside the building, self-supporting overhead household wiring, or pipeline household wiring, the FTTH indoor optical fiber cable exhibits excellent performance and adaptability.

The advantages of FTTH drop cable include:

(1) High space utilization:

By using optical fibers with higher transmission signal bandwidth, more data can be transmitted in the same space, improving space utilization efficiency.

(2) Strong durability:

Made of high-strength materials, it can operate for a long time in extreme environments, ensuring the stability of communication.

(3) Strong anti-interference ability:

Using special insulation materials to effectively resist electromagnetic interference and external noise, ensuring the reliability of data transmission.

(4) Long transmission distance:

Using low loss fiber optic materials to achieve longer distance data transmission and expand communication coverage.

(5) Fast speed:

The FTTH drop cable Provides higher bandwidth and faster data transmission speed to meet the needs of modern high-speed network communication.

(6) Lightweight structure:

The FTTH drop cable has a simple structure, light weight, strong practicality, and is easy to install and maintain.

(7) Environmental protection and safety:

The protective sheath of FTTH drop cable is made of low smoke, halogen-free and flame-retardant materials to reduce the risk of fire and meet the safety standards of indoor environments.

Product Packing& Delivery

Packaging Details: Packed on drums;

Drums length: 1KM,2KM, 3KM or 4KM, as per buyers’ request

Delivery detail: 15 days
