GJXFH
Cytech
Product Description

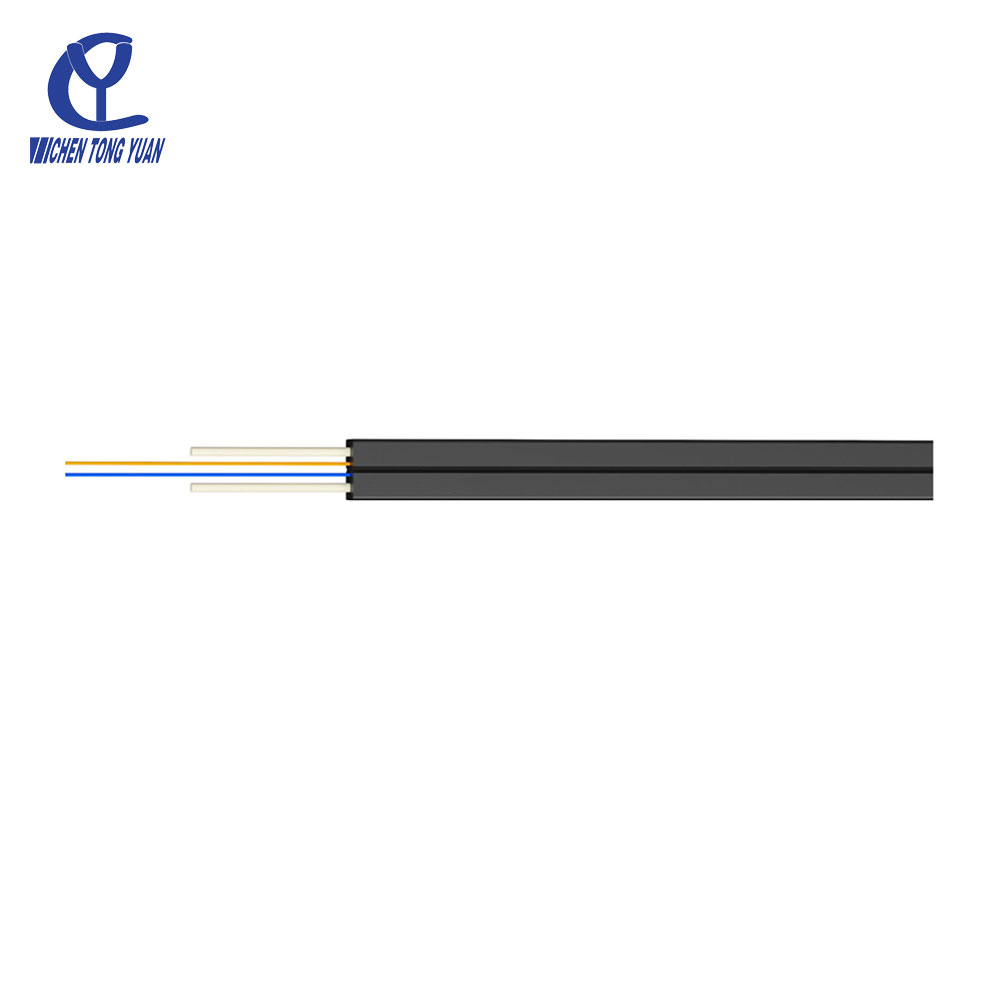

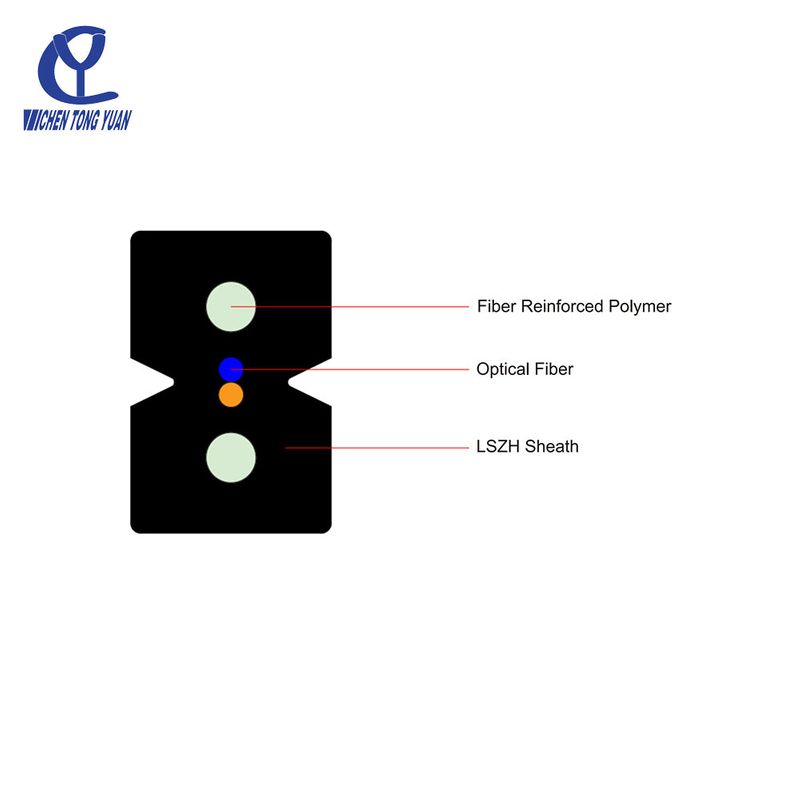

GJXFH FTTH drop fiber cable is a compact, flexible, and flame-retardant cable designed for indoor Fiber-to-the-Home (FTTH) installations. It features tight-buffered fibers and aramid yarn reinforcement, ensuring easy deployment, durability, and reliable high-speed connectivity in residential or building settings.
Applications: Access network, fiber to the home(FTTH);
Laying method:Indoor integrated wiring;
Working temperature:-20℃~+60℃；
Bend Radius: Static 20mm,
Dynamic:40mm.
YD/T 1997.1-2022 Drop optical fibre cables for telecommunication Part1:Bow-type optical fibre cables
Fiber count | Cable size W*H(mm) | Cable Weight(KG/KM) | Max.tensile strength(N) | Max.Crush resistance(N/100m) | ||
Short Term | Long Term | Short Term | Long Term | |||
1 | 2.0*3.0 | 9 | ≥80 | ≥40 | ≥1000 | ≥500 |
2 | 2.0*3.0 | 9 | ≥80 | ≥40 | ≥1000 | ≥500 |
4 | 2.0*3.0 | 9 | ≥80 | ≥40 | ≥1000 | ≥500 |
GJXFH-G.657A2 FTTH Drop Fiber Cable.pdf
(1) When laying the FTTH drop fiber cable, it should be kept straight, avoiding twisting and crossing, and should not be subjected to external compression or operational damage.
(2) At corners or bends, the FTTH drop fiber cable should have a certain curvature to ensure its bending radius, and be protected with sleeves or other protective measures to prevent the cable from being damaged.
(3) The laying of FTTH drop fiber cable should fully consider safety requirements such as fire prevention, rodent prevention, and compression prevention to ensure the long-term stable operation of the cables.
(4) For important users or scenarios with special requirements, appropriate protection methods should be selected according to the actual situation to enhance the reliability and safety of the FTTH drop fiber cable.
(5) During the laying process of FTTH drop fiber cable, professional cable laying tools and brackets should be used to avoid entanglement or unnecessary tension on the cables. At the same time, attention should be paid to the tensile strength and bending radius of the cables.
(1) Regular preventive maintenance should be carried out to check whether the outer skin, joints, and connectors of the FTTH optical fiber cable are intact, and whether there are signs of wear, aging, or damage. Problems should be detected and dealt with in a timely manner to prevent small problems from escalating into major failures.
(2) Establish maintenance records, detailing the time, content, results, etc. of each maintenance to facilitate subsequent analysis and optimization of maintenance strategies.
(3) During the maintenance process, professional techniques and tools should be used to avoid non professionals operating on their own, ensuring the safety and effectiveness of the maintenance work.
(4) According to the environmental conditions of the FTTH drop fiber cable, corresponding maintenance measures should be taken, such as strengthening inspections, moisture prevention, dust prevention, etc., to ensure the long-term stable operation of the optical cable.
FTTH drop fiber cable, with their lightweight, high flexibility, and convenient installation characteristics, have become the ideal choice for FTTH projects. It can easily adapt to various complex indoor wiring conditions, such as a 20mm bending radius and withstand lateral pressure from human trampling.
FTTH optical fiber cable also play an important role in indoor cabling. Its characteristics of easy bending, softness, and tensile strength make it very convenient to use in narrow areas such as corners of the wall. At the same time, its advantages of fast transmission speed, large bandwidth, and strong anti-interference ability also make it an ideal choice for introducing optical cables into buildings.
Whether it is vertical and horizontal wiring inside the building, self-supporting overhead household wiring, or pipeline household wiring, the FTTH fiber optical fiber cable exhibits excellent performance and adaptability.
By using optical fibers with higher transmission signal bandwidth, more data can be transmitted in the same space, improving space utilization efficiency.
Made of high-strength materials, it can operate for a long time in extreme environments, ensuring the stability of communication.
Using special insulation materials to effectively resist electromagnetic interference and external noise, ensuring the reliability of data transmission.
Using low loss fiber optic materials to achieve longer distance data transmission and expand communication coverage.
The FTTH drop fiber cable Provides higher bandwidth and faster data transmission speed to meet the needs of modern high-speed network communication.
The FTTH drop fiber cable has a simple structure, light weight, strong practicality, and is easy to install and maintain.
The protective sheath of FTTH drop fiber cable is made of low smoke, halogen-free and flame-retardant materials to reduce the risk of fire and meet the safety standards of indoor environments.
Packaging Details: Packed on drums;
Drums length: 1KM,2KM, 3KM or 4KM, as per buyers’ request
Delivery detail: 15 days
