ADSS-I
Cytech
Product Description

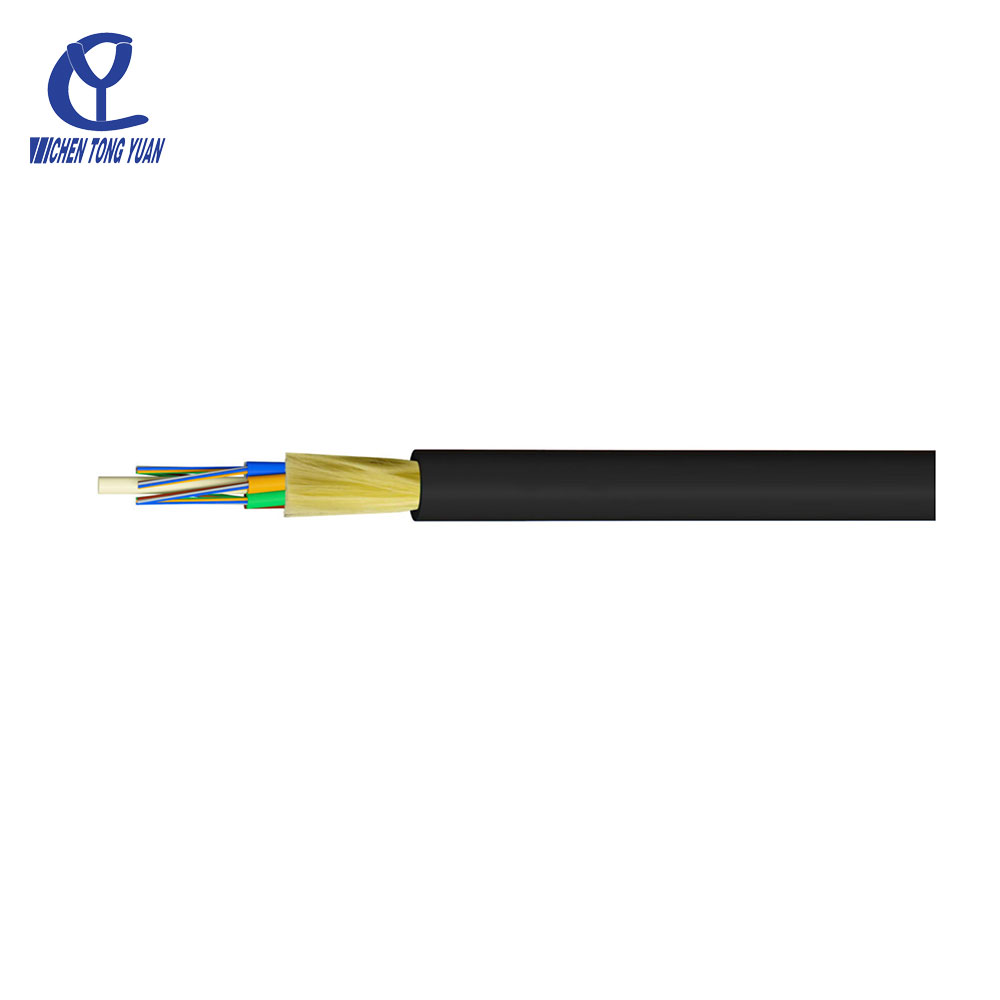

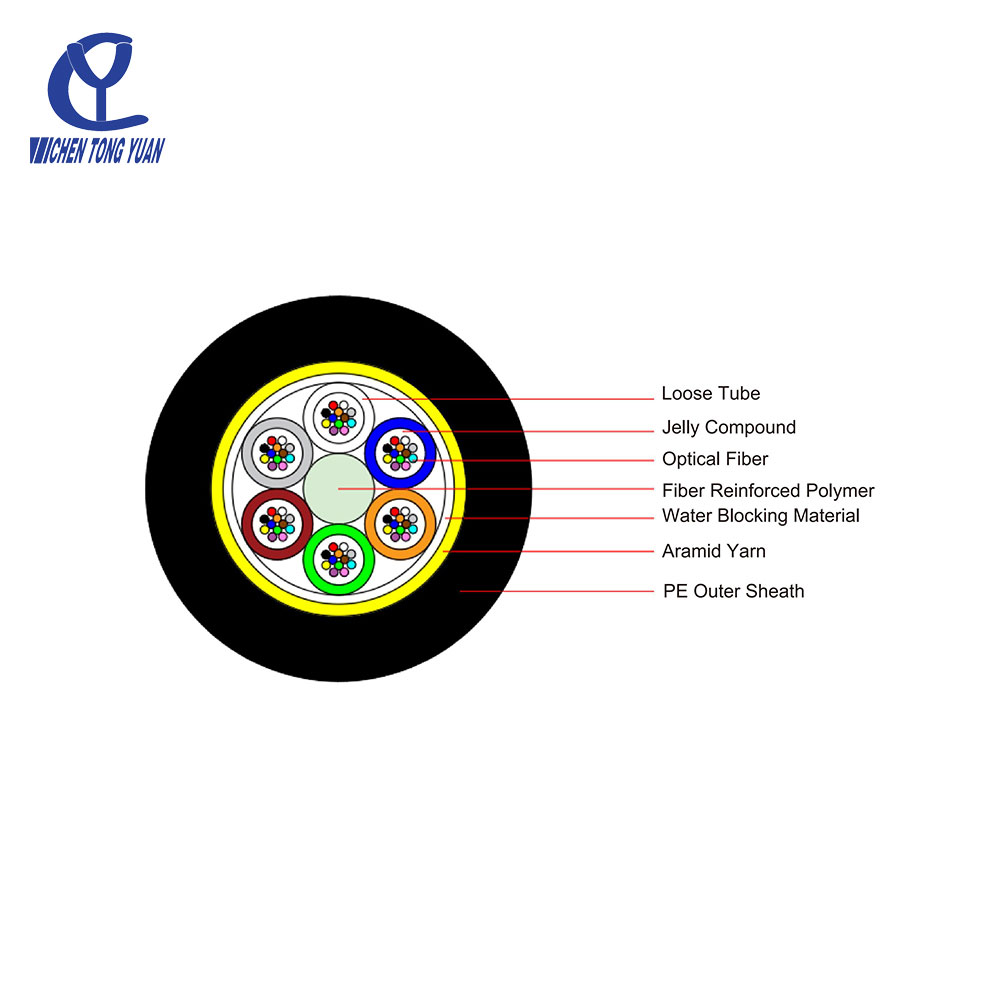

The ADSS (All-Dielectric Self-Supporting) cable is a robust and versatile communication cable designed for aerial installation without the need for a separate support wire. Its all-dielectric construction ensures immunity to electromagnetic interference, making it ideal for high-voltage power line environments. With exceptional strength, lightweight design, and resistance to environmental factors, ADSS cable delivers reliable, high-speed data transmission for long-distance networks.
•Small cable diameter,light weight,low additional load on the tower;
•High tensile strength;
•Non-metallic structure,good insulation performance,lighting protection;
•Excellent production process,uniform aramid yarn, excellent stress and strain performance;
•Excellent lighting resistance,best anti-corrosion performance,and can adapt to harsh weather conditions;
•Can be constructed without power failure, power line failure does not affect the normal transmission of optical cable.
Applications: Communication lines of high-voltage power transmission systems
Laying method:Overhead
Working temperature:-40℃~+70℃；
Bend Radius: Static 15 times the cable diameter,
Dynamic 25 times the cable diameter.
IEC 60794-1、IEEE1224、DL/T788-2016
Fiber count | Cable Diameter(mm) | Cable Weight(KG/KM) | Max.tensile strength(N) | Max.Crush resistance(N/100m) | ||
RTS | MAT | Short Term | Long Term | |||
2-30 | 9.4 | 66 | According to the span | According to the span | ≥1000 | ≥300 |
32-60 | 10.0 | 75 | ||||
62-72 | 10.6 | 83 | ||||
74-96 | 11.9 | 105 | ||||
98-120 | 13.4 | 135 | ||||
122-144 | 14.9 | 166 | ||||
ADSS-I optical fiber cable.pdf
ADSS (All-Dielectric Self-Supporting) cable is designed for easy and efficient aerial installation, typically on utility poles or transmission towers. During installation, the cable is suspended using specialized hardware, such as tension clamps and suspension kits, ensuring it is securely anchored without the need for a separate support wire. Careful attention is paid to sagging and tension to maintain optimal performance and avoid damage. Proper spacing and clearance from power lines are also critical to ensure safety and compliance with regulations.
Conduct a route survey to assess environmental conditions, pole/tower strength, and clearance requirements. Ensure compliance with safety and regulatory standards.
Install appropriate suspension hardware, such as tension clamps, dead-end grips, and vibration dampers, to securely anchor the cable.
Use specialized equipment to carefully string the ADSS cable along the planned route. Maintain proper tension and sag to avoid overstressing the cable.
Secure the cable to poles or towers using suspension kits, ensuring adequate clearance from power lines and other obstacles.
Perform optical and mechanical tests to verify the cable's integrity and performance after installation.
Maintenance of ADSS cable is minimal due to its durable, all-dielectric construction, which resists environmental factors like UV radiation, moisture, and temperature fluctuations. Regular inspections are recommended to check for physical damage, sagging, or hardware wear. Cleaning the cable and hardware, as well as monitoring for any signs of stress or degradation, helps ensure long-term reliability and performance. With proper installation and routine maintenance, ADSS cable provides a low-maintenance, high-performance solution for modern communication networks.
Periodically check for physical damage, sagging, or hardware wear caused by environmental factors or external forces.
Remove dirt, debris, or contaminants from the cable and hardware to prevent long-term degradation.
Watch for signs of stress from extreme weather, UV exposure, or temperature fluctuations.
Ensure suspension hardware remains secure and replace any worn or damaged components promptly.
Keep detailed records of installation and maintenance activities to track the cable’s condition and performance over time.
ADSS optical fiber cable is widely used in long-distance communication networks due to its long-distance transmission capability, providing a channel for stable and high-speed data transmission.
In the power system, ADSS optical fiber cables are used to construct fiber optic communication systems, enabling real-time transmission of information such as power dispatch and monitoring. Especially in high-voltage power grids, it can withstand the impact of high electric fields and polluted environments, ensuring stable transmission of communication signals.
ADSS optical fiber cable can be used as a supplement or alternative to fiber optic composite ground wire (OPGW) systems for the introduction and extraction of relay stations. Based on its safety properties, it can effectively solve the problem of power isolation.
ADSS optical fiber cables are widely used in fiber optic communication systems in high-voltage (such as 110kV-220kV) power grids, providing support for the stable operation of power systems.
It is also used in fiber optic communication systems in distribution networks ranging from 6kV to 180kV, meeting the communication needs of the distribution network.
ADSS optical fiber cables are installed on the same tower as power lines, making them particularly suitable for situations that require large spans, such as crossing rivers, lakes, ditches, railways, and highways.
▶ Adverse environment
Due to its excellent weather resistance and corrosion resistance, ADSS optical fiber cables can be used in harsh environmental conditions such as humidity, high temperature, strong electric field, multiple lightning strikes, and cold, improving the service life of optical cables.
ADSS cable is made entirely of non-metallic materials, making it immune to electromagnetic interference (EMI) and lightning strikes, ideal for installation near high-voltage power lines.
Its robust structure allows for aerial installation without the need for a separate support wire, reducing installation complexity and cost.
ADSS cable is lightweight yet highly durable, capable of withstanding harsh environmental conditions such as UV exposure, temperature extremes, and moisture.
Engineered with high tensile strength, it maintains low sag over long spans, ensuring reliable performance in various terrains.
The all-dielectric materials prevent corrosion, extending the cable’s lifespan and reducing maintenance requirements.
Suitable for a wide range of applications, including power utilities, telecommunications, and long-distance networks.
With minimal maintenance needs and easy installation, ADSS cable offers a cost-effective solution for modern communication infrastructure.
Supports high-speed data transmission, meeting the demands of growing network capacity and advanced communication technologies.
These advantages make ADSS optical fiber cable a reliable, efficient, and future-proof choice for modern connectivity needs.
Choosing the right ADSS (All-Dielectric Self-Supporting) cable involves considering several key factors to ensure it meets your specific application requirements. Here’s a step-by-step guide to help you make the right choice:
Identify whether the cable will be used for telecommunications, power utilities, or long-distance networks.
Consider environmental conditions such as temperature extremes, UV exposure, wind, ice load, and proximity to high-voltage power lines.
Choose the number of fibers based on current and future bandwidth needs. Common options range from 12 to 144 fibers or more.
Select single-mode (SM) or multi-mode (MM) fibers depending on the transmission distance and data rate requirements. Single-mode is typically used for long-distance communication.
Ensure the cable has sufficient tensile strength to withstand the mechanical stresses during installation and operation.
Check the cable’s ability to resist crushing forces, especially in areas prone to heavy ice or wind loads.
Diameter and Weight: Choose a cable with an appropriate diameter and weight to ensure easy handling and installation.
Determine the maximum span length between poles or towers. ADSS cables are designed for specific span lengths, so choose one that matches your installation requirements.
Ensure the cable’s sag is within acceptable limits to avoid excessive tension or damage.
For outdoor installations, ensure the cable has UV-resistant sheathing to prevent degradation from sunlight.
Temperature Range: Verify that the cable can operate reliably within the expected temperature range of your environment.
Look for cables with water-blocking features to prevent moisture ingress.
Ensure the cable complies with relevant industry standards, such as IEC, IEEE, or ITU-T, for quality and performance.
Check for compliance with local regulations and utility requirements.
Choose a cable that is easy to install, with appropriate hardware and accessories.
Opt for a low-maintenance cable with a proven track record of reliability in similar environments.
Select a reputable manufacturer with a history of producing high-quality ADSS cables.
Ensure the supplier offers strong technical support and after-sales service.
Balance the initial cost with long-term benefits, such as durability, low maintenance, and future-proofing.
Consider the overall cost, including installation, maintenance, and potential downtime.
By carefully evaluating these factors, you can choose the most suitable ADSS optical fiber cable for your specific needs, ensuring reliable performance and long-term value.
Packaging Details: Packed on drums;
Drums length: 1KM,2KM, 3KM or 4KM, as per buyers’ request
Delivery detail: 15 days
