The 144 cores fiber optic cross connect cabinet is used in ODN network systems to manage trunk cables, distribution cables, and optical splitter connections. It provides centralized fiber organization and stable cross connection for optical distribution networks.
CY-T118-144
Cytech
Product Description

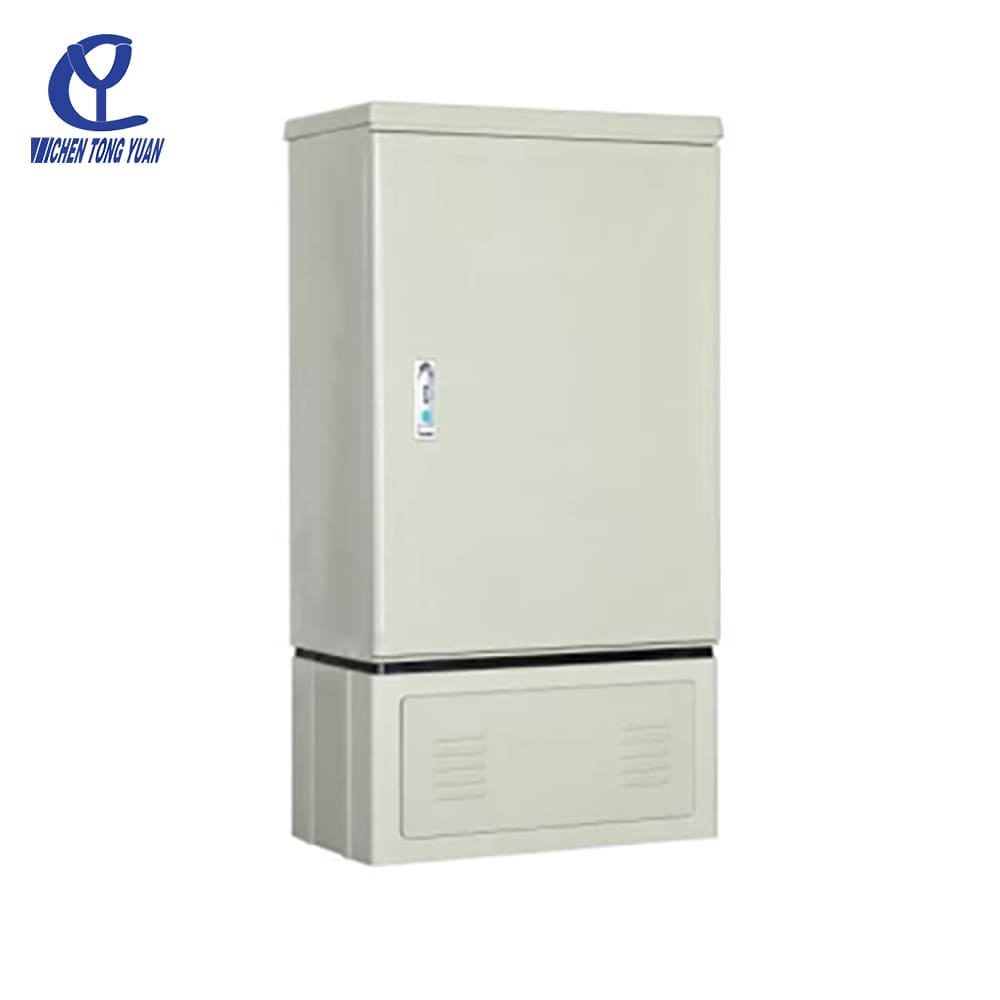

The 144 cores fiber optic cross connect cabinet is designed for optical distribution networks (ODN), providing centralized management of trunk and distribution fiber connections in telecom infrastructure.
Durable material ensures long-term outdoor performance.
Allows efficient installation and maintenance.
Enables organized fiber management and distribution.
Provides safe and stable electrical protection.
Supports straight-through fiber cable routing.
| Model No. | CY-T118-144 | Color | Grey |
| Capacity | 144cores | Protection Level | IP55 |
| Material | SMC | Flame retardant performance | Non-flame retardant |

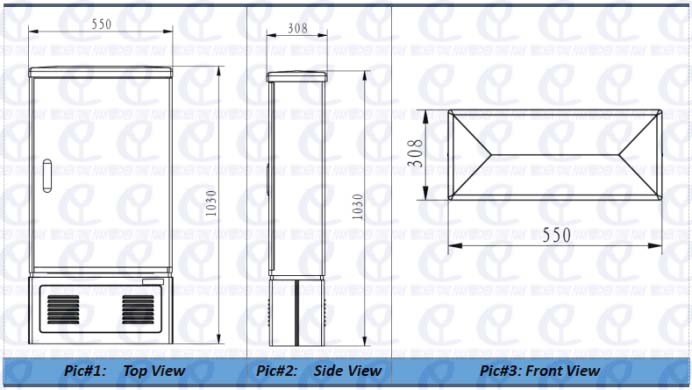

| Dimension(L*W*D,MM) | 1030*550*308 | Splitter | Can be with 1:8 /1:16/1x32 Module Type Splitter |

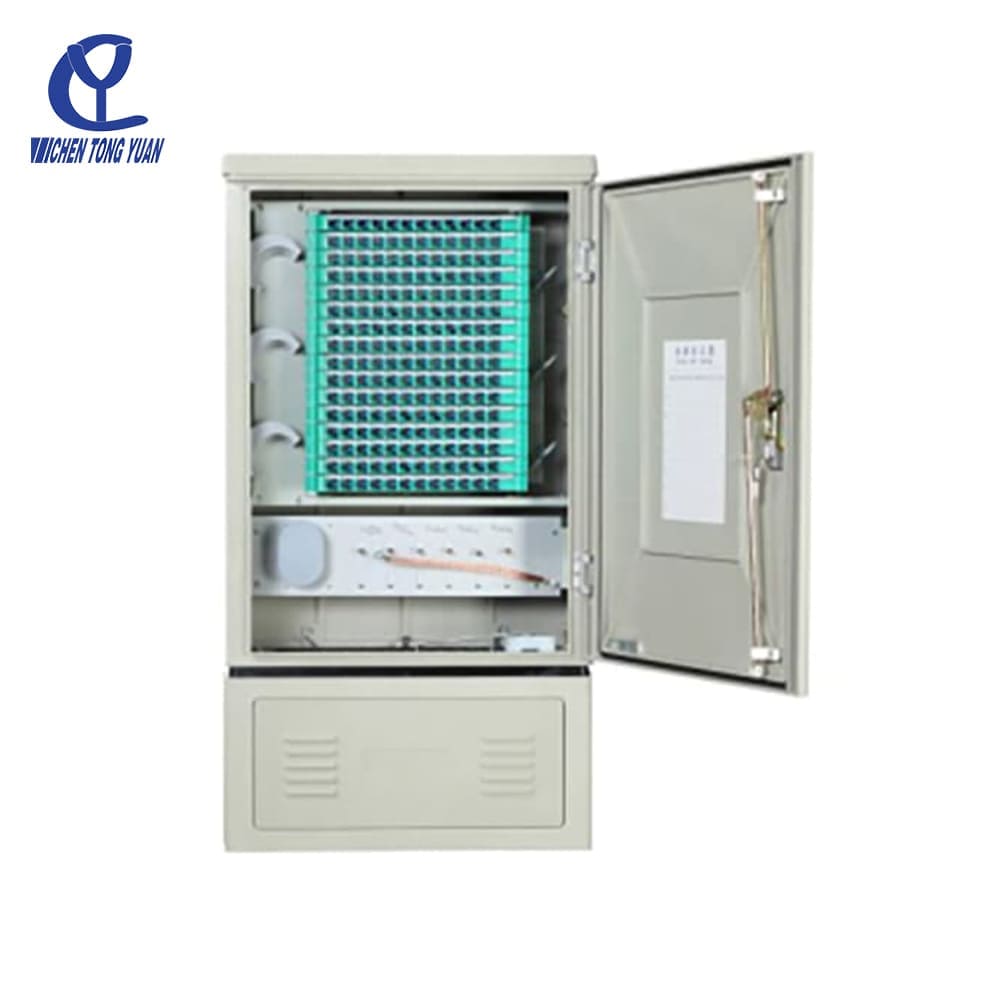

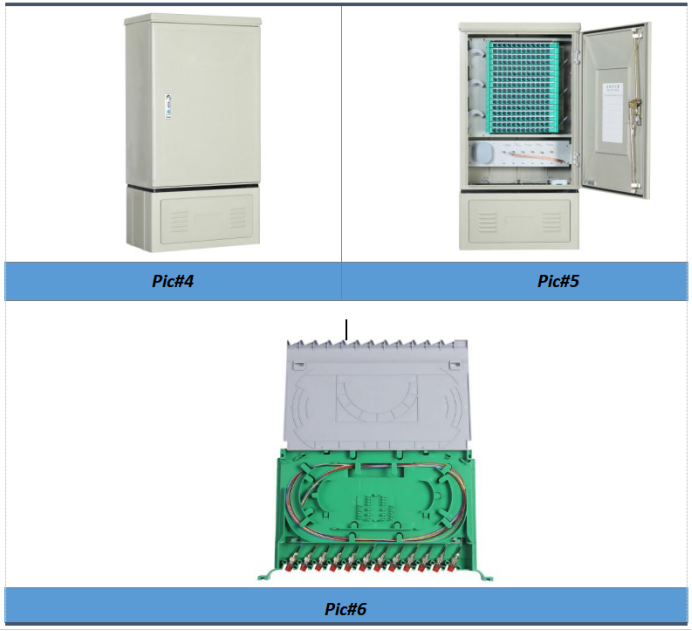

1.The cabinet structure adopts single-side operation,and has a perfect grounding system(Pic #5 for details);
2.The direct fusion unit is reserved at a suitable position in the box to facilitate the straight-through of the optical cable ( Pic#5 for details);
3.The full-configurated cabinet needs to be equipped with 12 integrated splice trays.
Used for trunk and distribution cable management.
Acts as a central connection point in optical networks.
Supports splitter interface device installation.
Suitable for telecom infrastructure expansion.
Carton packing: 1 sets/carton
Carton size: 1165*580*340mm(1PCS/Box)
Weight: 24kg/carton box
