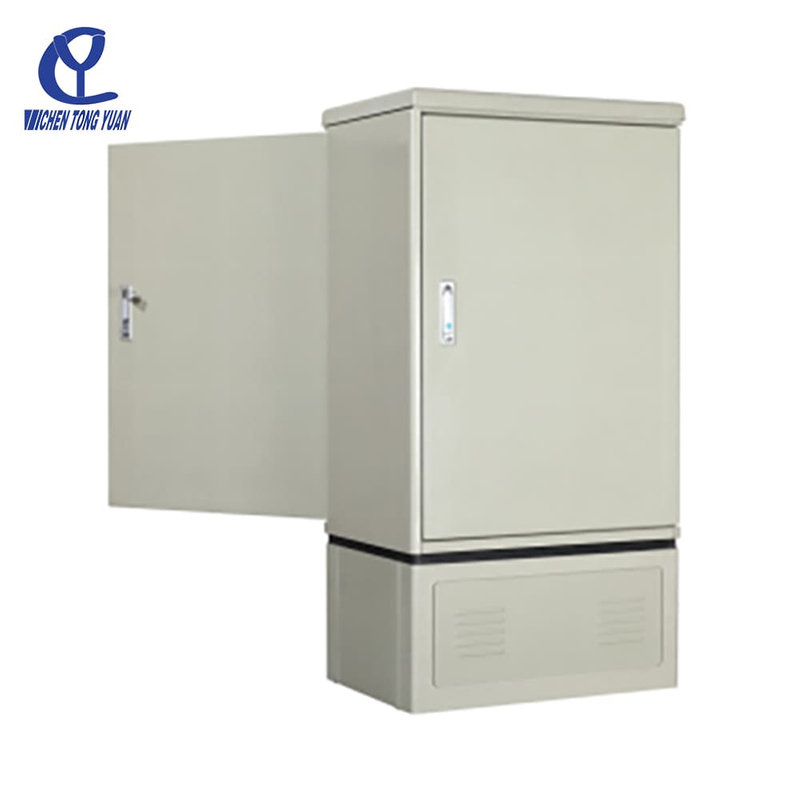

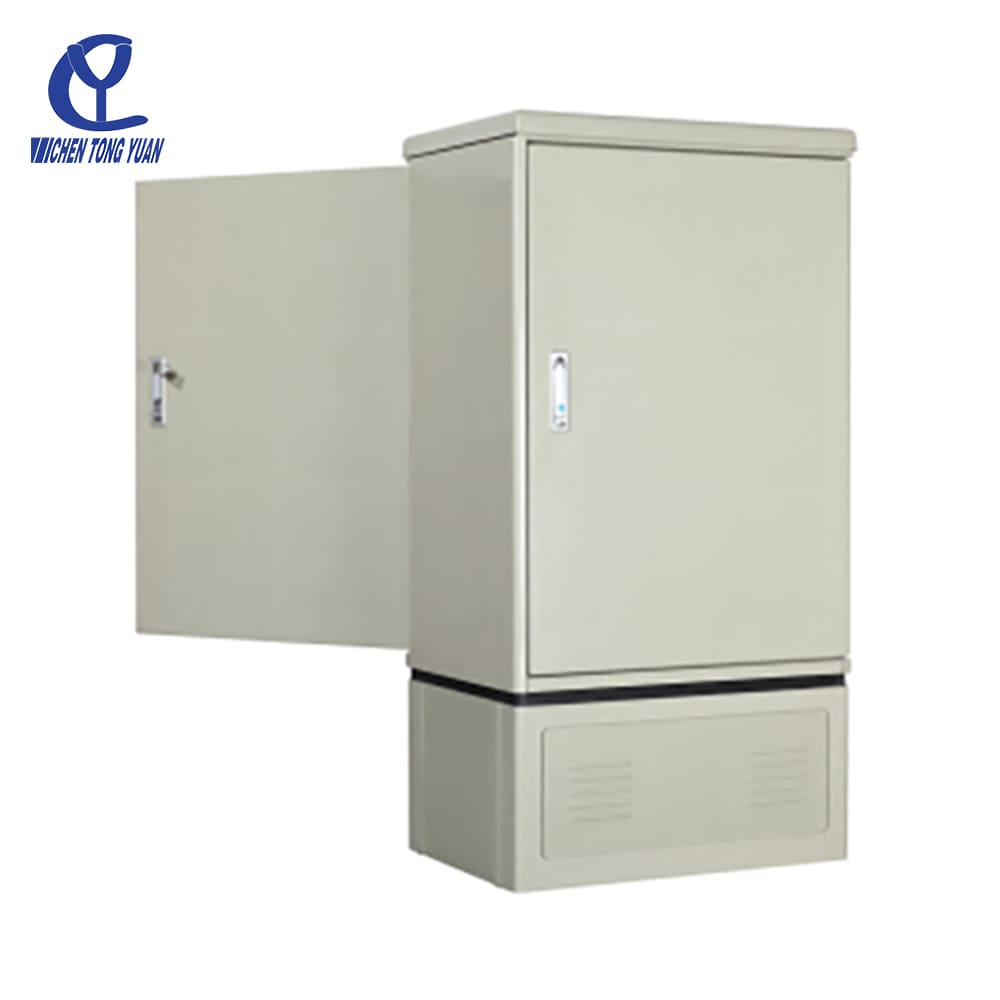

576 cores fiber optic cross connect cabinet is designed for large-scale fiber network applications.
It is used to connect trunk cables, distribution cables, and optical splitter interface devices, providing centralized fiber management and stable cross connection for telecom networks.
CY-T118-576
Cytech
Product Description
The 576 cores fiber optic cross connect cabinet is used in high-capacity fiber distribution networks to manage trunk and distribution cable connections with centralized fiber organization.
Ensures durable performance in outdoor environments.
Simplifies installation and maintenance.
Provides stable electrical protection for network safety.
Supports flexible straight-through fiber routing.
Enables large-scale fiber management and organization.
| Model No. | CY-T118-576 | Color | Grey |
| Capacity | 576 cores | Protection Level | IP55 |
| Material | SMC | Flame retardant performance | Non-flame retardant |

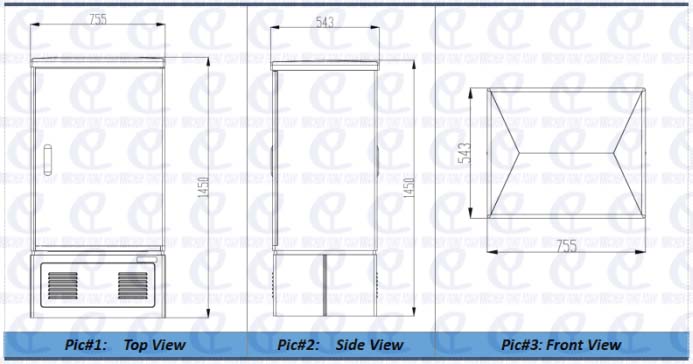

| Dimension(L*W*D,MM) | 1450*755*543 | Splitter | Can be with 1:8 /1:16/1x32 Module Type Splitter |

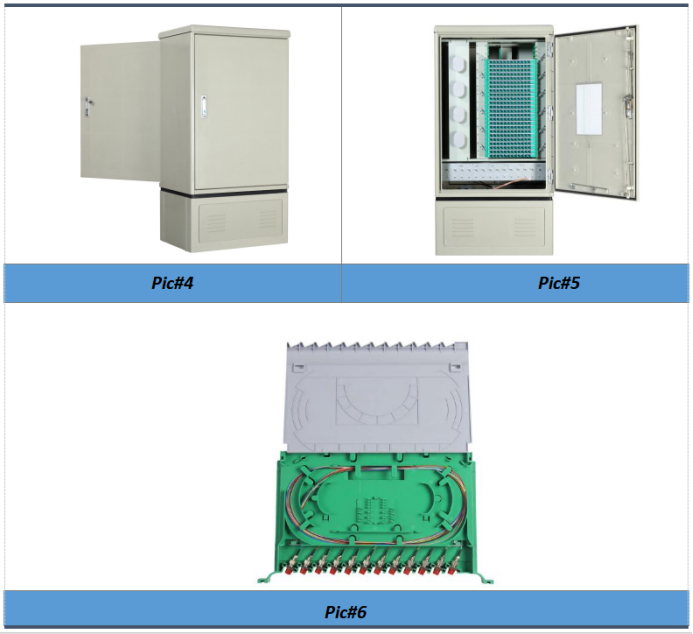

1.The cabinet structure adopts single-side operation,and has a perfect grounding system(Pic #5 for details);

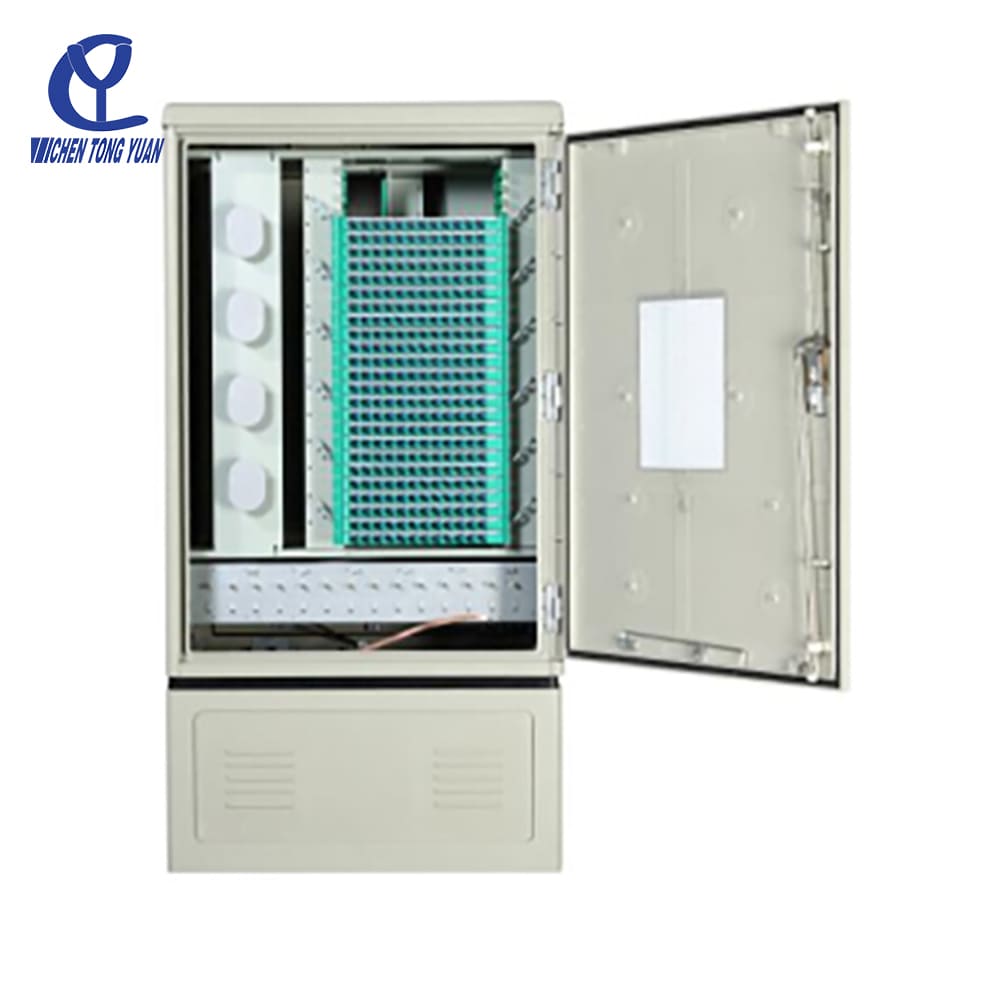

2.The direct fusion unit is reserved at a suitable position in the box to facilitate the straight-through of the optical cable ( Pic#5 for details);
3.The full-configurated cabinet needs to be equipped with 48 integrated splice trays.
Used for trunk and distribution cable management.
Acts as a central fiber connection node.
Supports splitter interface device connections.
Suitable for telecom infrastructure expansion.
Carton packing: 1 sets/carton
Carton size: 1585*785*575mm(1PCS/Box)
Weight: 70kg/carton box
