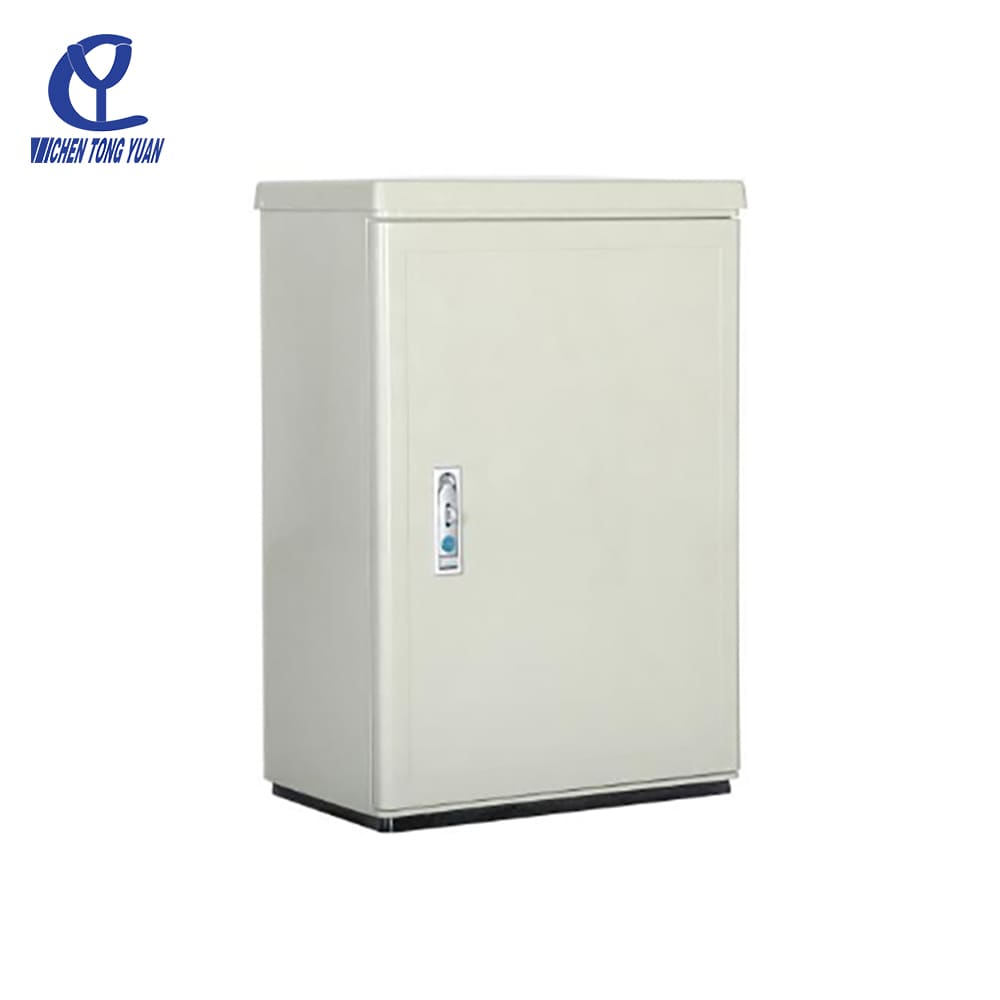

96 cores Fiber Optic Cross Connect Cabinet

Product Description

The 96 cores Fiber Optic Cross Connect Cabinet is a high-capacity, robust, and versatile solution designed for efficient management and distribution of fiber optic cables in telecommunications and data center environments. This cabinet is engineered to accommodate up to 96 fiber optic cores, making it ideal for high-density applications where space optimization and scalability are critical.

Product Parameter

Product Feature

High Capacity:

With the ability to house up to 96 fiber cores, this cabinet supports large-scale fiber optic networks, ensuring seamless connectivity and minimal signal loss.

Durability and Protection:

Constructed from high-quality materials, the cabinet provides excellent protection against environmental factors such as dust, moisture, and physical damage, ensuring the longevity and reliability of the fiber optic connections.

Efficient Cable Management:

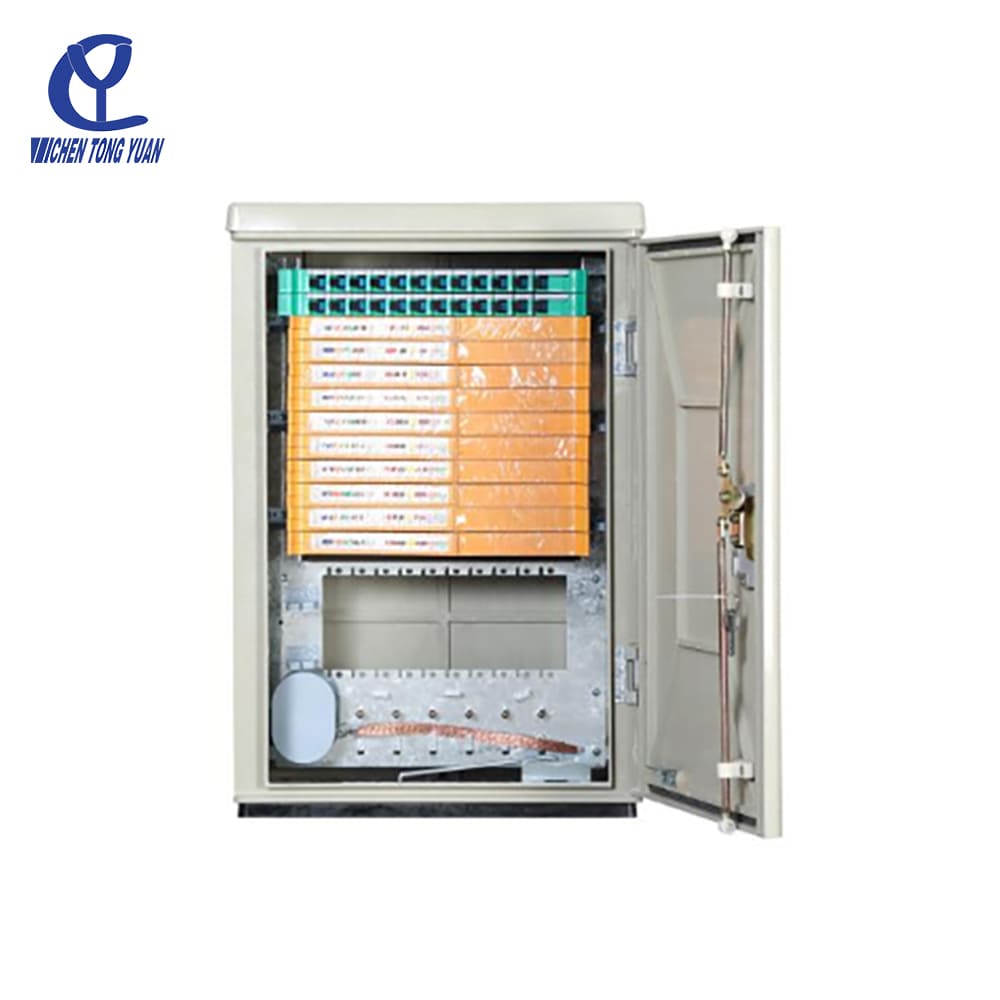

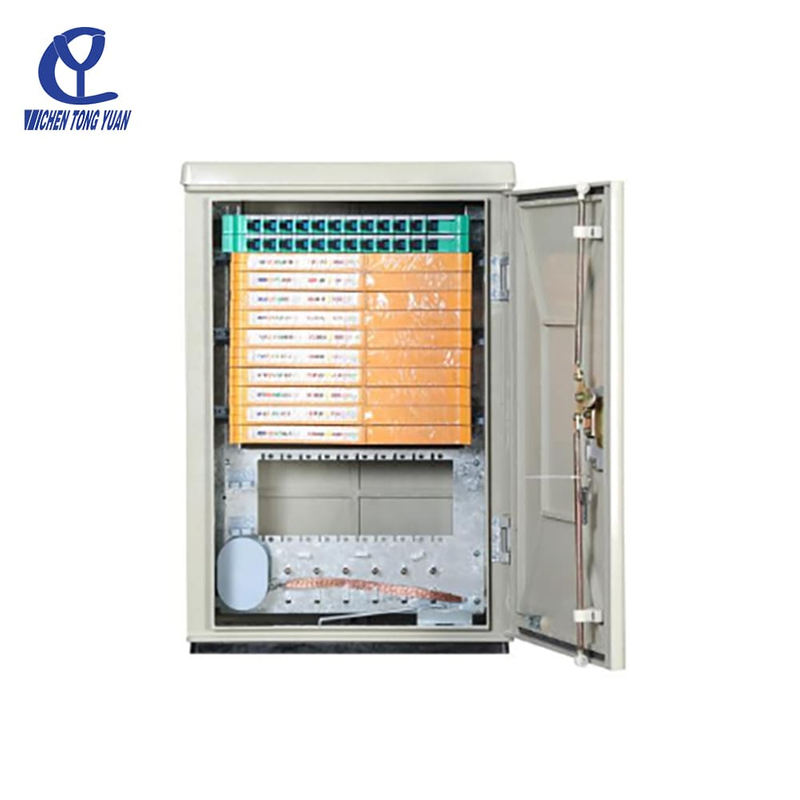

The cabinet is designed with advanced cable management features, including organized routing paths, splice trays, and patch panels, which facilitate easy installation, maintenance, and troubleshooting.

Scalability:

The modular design allows for easy expansion and reconfiguration, making it suitable for growing network demands and future-proofing infrastructure investments.

Security:

Equipped with secure locking mechanisms, the cabinet ensures that sensitive fiber optic connections are protected from unauthorized access and tampering.

Versatility:

Suitable for a wide range of applications, including telecommunications, data centers, enterprise networks, and industrial environments, the cabinet supports various types of fiber optic connectors and adapters.

Product Installation

1.Site Preparation

Location Selection:

Choose a suitable location for the cabinet, ensuring it is easily accessible for maintenance and free from environmental hazards such as flooding or excessive heat.

Mounting Surface:

Ensure the mounting surface is stable and level. For wall-mounted cabinets, verify that the wall can support the cabinet's weight.

2.Unpacking and Inspection

Unpack the Cabinet:

Carefully unpack the 96-core fiber optic cross-connect cabinet and inspect it for any shipping damage.

Check Components:

Verify that all necessary components, including mounting brackets, screws, and cable management accessories, are present.

3.Cabinet Installation

Mounting the Cabinet:

Secure the cabinet to the wall or floor using the provided mounting brackets and screws. Ensure it is firmly attached and level.

Grounding:

Properly ground the cabinet to protect against electrical surges and ensure safety.

4.Cable Management

Routing Fiber Cables:

Plan the routing of the 96-core fiber optic cables to minimize bending and stress. Use cable management trays and guides to organize and secure the cables.

Connecting Cables:

Carefully connect the fiber optic cables to the designated ports within the cabinet. Ensure that each connection is secure and properly aligned to avoid signal loss.

5.Splicing and Termination

Fiber Splicing:

If required, splice the fiber optic cables using a fusion splicer. Ensure that splices are clean and properly protected with splice sleeves.

Termination:

Terminate the fibers using appropriate connectors (e.g., SC, LC) and install them in the designated patch panels or adapters.

6. Testing and Verification

Optical Testing:

Use an optical power meter and light source to test each fiber connection for signal loss and ensure they meet the required specifications.

Continuity Check:

Verify the continuity of each fiber to ensure there are no breaks or misconnections.

7.Labeling and Documentation

Labeling:

Clearly label each fiber and port within the cabinet for easy identification and future maintenance.

Documentation:

Document the installation, including cable routes, connections, and test results, for future reference.

8.Final Inspection and Closure

Inspect the Installation:

Conduct a final inspection to ensure all components are securely installed and the cabinet is properly sealed.

Close the Cabinet:

Securely close and lock the cabinet to protect the internal components from dust and unauthorized access.

9.Commissioning

System Activation:

Activate the fiber optic network and verify that all connections are functioning correctly.

Handover:

Provide the client with all necessary documentation and conduct a brief training session on the cabinet's maintenance and operation.

By following these steps, the 96-core fiber optic cross-connect cabinet can be installed efficiently and effectively, ensuring reliable performance and ease of maintenance.

Product Packing

Carton packing: 1 sets/carton

Carton size: 790*480*310mm(1PCS/Box)

Weight: 18kg/carton box
