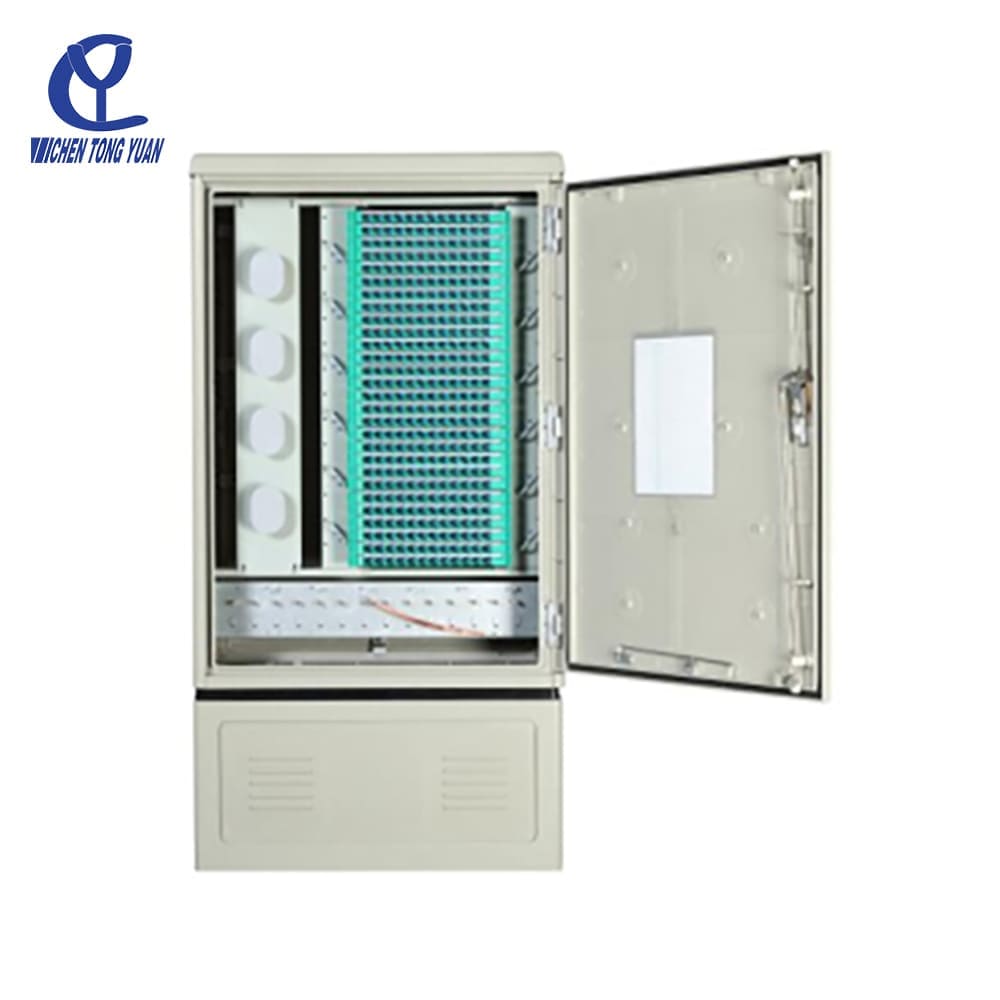

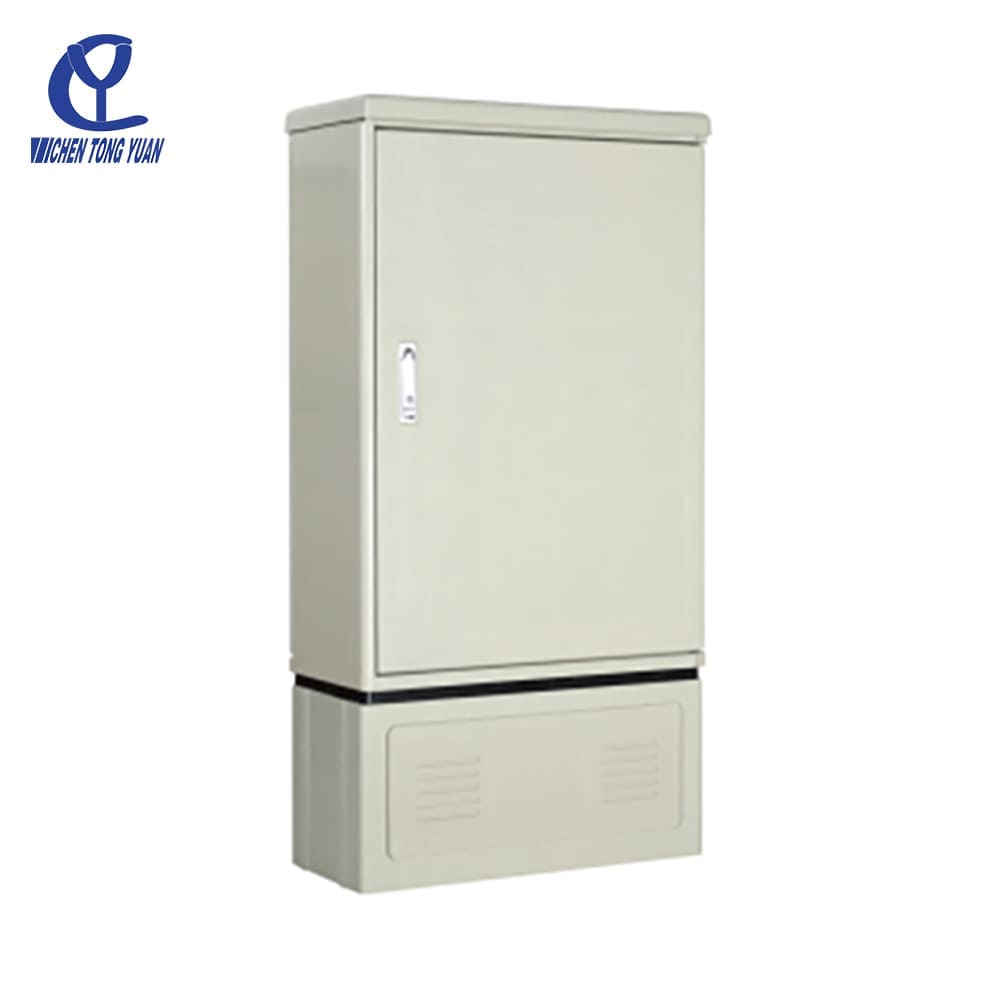

The 288 cores fiber optic cross connect cabinet CY-T118-288 is designed for ODN network applications where fiber aggregation and distribution are required. It connects trunk cables, distribution cables, and optical splitter interface devices, providing stable fiber organization and cross connection for telecom networks.
CY-T118-576
Cytech
Product Description
The 288 cores fiber optic cross connect cabinet is used in optical distribution systems to manage trunk and distribution cable connections with centralized fiber organization.
Ensures durability and stable performance in outdoor environments.
Allows convenient installation and maintenance from one side.
Provides safe electrical protection for network stability.
Supports straight-through fiber cable routing design.
Enables organized fiber management for large-scale connections.
| Model No. | CY-T118-288 | Color | Grey |
| Capacity | 288 cores | Protection Level | IP55 |
| Material | SMC | Flame retardant performance | Non-flame retardant |
| Dimension(L*W*D,MM) | 1450*755*350 | Splitter | Can be with 1:8 /1:16/1x32 Module Type Splitter |

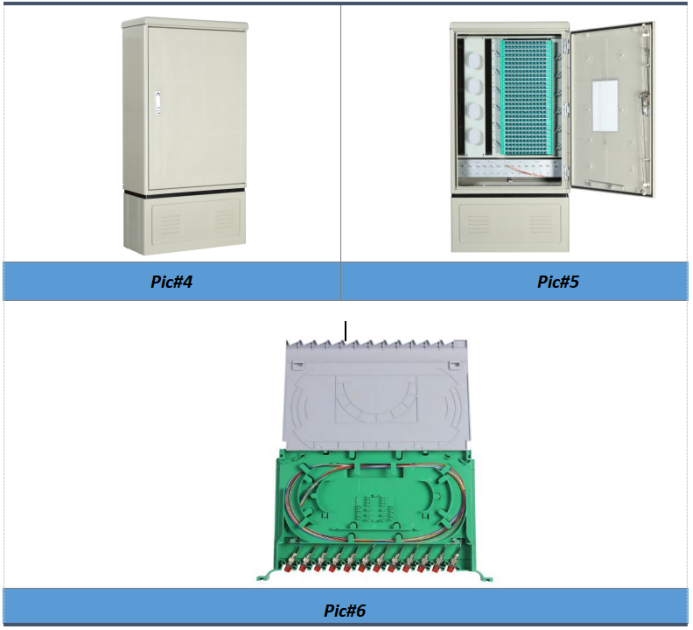

1.The cabinet structure adopts single-side operation,and has a perfect grounding system(Pic #5 for details);
2.The direct fusion unit is reserved at a suitable position in the box to facilitate the straight-through of the optical cable ( Pic#5 for details);
3.The full-configurated cabinet needs to be equipped with 24 integrated splice trays.
Used for managing backbone and access layer fiber connections.
Acts as a centralized fiber connection point.
Supports splitter device integration in fiber networks.
Suitable for large-scale telecom infrastructure.
Carton packing: 1 sets/carton
Carton size: 1585*785*380mm(1PCS/Box)
Weight: 60kg/carton box
