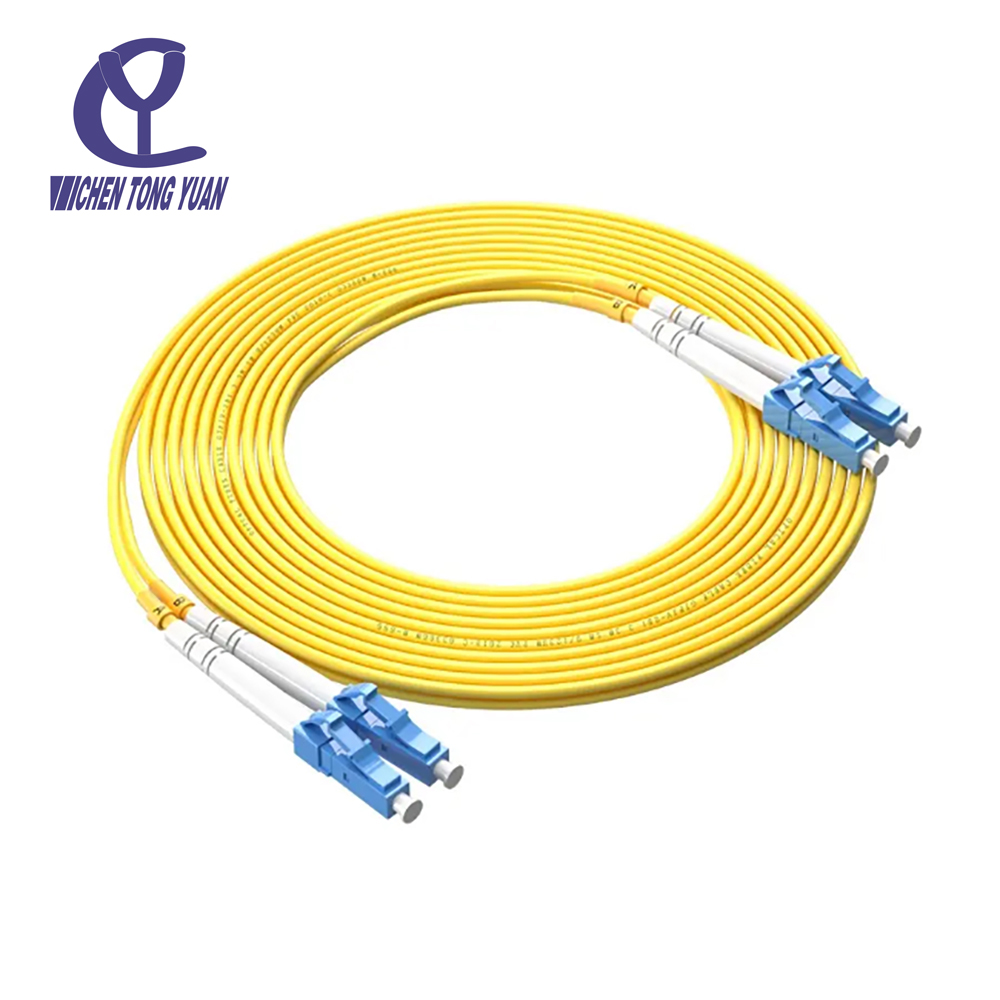

The fiber duplex patch cord is a single mode fiber cable designed for reliable optical connectivity in modern communication networks. It delivers stable high-speed transmission with low loss performance and is widely used in telecom, LAN, FTTH, and data center applications.
Cytech
Product Description
The fiber duplex patch cord is used to connect optical devices, patch panels, and network equipment, ensuring stable and efficient signal transmission in telecom and data communication systems.
Ensures efficient and stable optical signal transmission.
Reduces signal reflection for better network performance.
Suitable for repeated installation and long-term use.

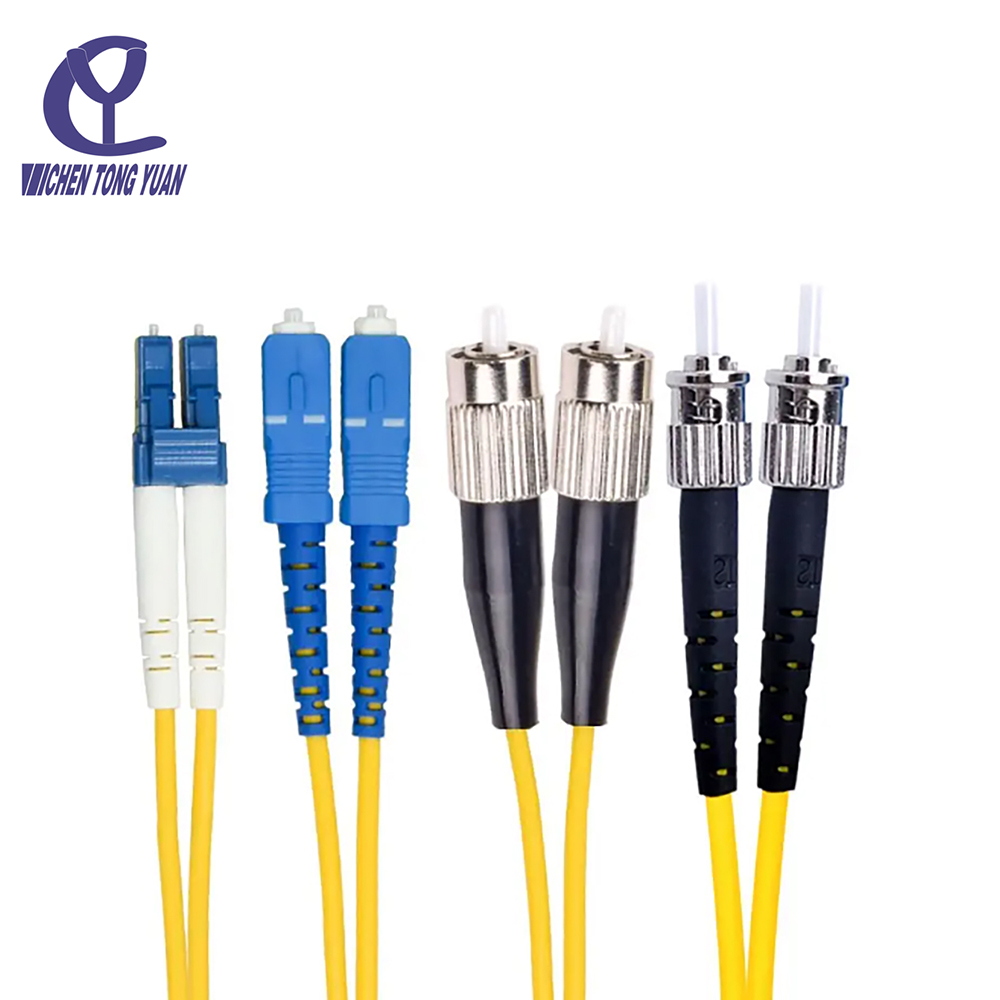

Supports LC, SC, FC, ST, and MTRJ connectors.
Reliable operation under different temperature conditions.
| Pigtail Connector | PC(SM) | UPC(SM) | APC(SM) | MM |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Insection Loss (dB) | ≤0.2 (max≤0.3) | |||
| Repeatability (dB) | ≤0.1 | |||
| Durability (1/Matings) | ≥500 | |||
| Operation Temperature (°C) | -25~+70 | |||
| Tensile Strength(N) | ≥70 (Φ3.0), ≥50 (Φ2.0) | |||
| Fiber | 9/125um, 50/125um,62.5/125um,ect | |||
| Diameter | 0.9mm, 2.0mm, 3.0mm etc | |||
| Cable Material | PVC, LSZH | |||
| Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc | |||
Used in optical communication systems.
Supports enterprise and data center connections.
Applied in fiber-to-the-home deployments.
Used for signal testing and measurement systems.
