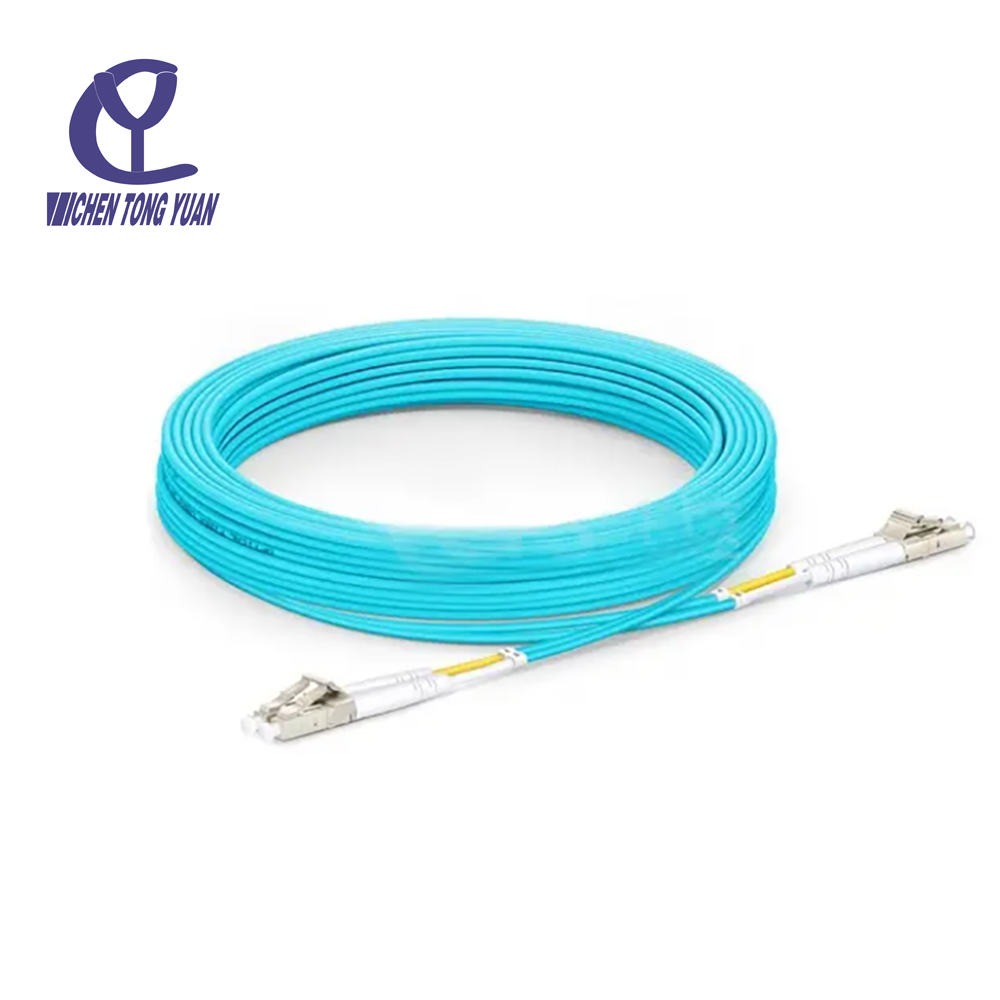

The OM3 duplex fiber optic patch cable 50/125 multimode is designed for high-speed optical transmission in modern network infrastructures. It is widely used in data centers, backbone networks, and high-bandwidth communication systems, providing stable and efficient signal performance.
Cytech
Product Description
The OM3 duplex fiber optic patch cable 50/125 is optimized for high-speed multimode transmission, supporting modern data center and backbone network architectures.
The OM3 duplex fiber optic patch cable supports 10G/40G high-bandwidth optical communication.
Ensures stable and efficient signal transmission over short and medium distances.
Suitable for high-density fiber environments in modern infrastructure.
Provides reliable duplex communication between network devices.
Supports PC, UPC, and APC polishing types for optimal performance.
| Pigtail Connector | PC(SM) | UPC(SM) | APC(SM) | MM |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Insection Loss (dB) | ≤0.2 (max≤0.3) | |||
| Repeatability (dB) | ≤0.1 | |||
| Durability (1/Matings) | ≥500 | |||
| Operation Temperature (°C) | -25~+70 | |||
| Tensile Strength(N) | ≥70 (Φ3.0), ≥50 (Φ2.0) | |||
| Fiber | 9/125um, 50/125um,62.5/125um,ect | |||
| Diameter | 0.9mm, 2.0mm, 3.0mm etc | |||
| Cable Material | PVC, LSZH | |||
| Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc | |||
Supports high-speed interconnection in cloud and enterprise data centers.
Enables high-density, high-bandwidth optical links for modern server architecture.
Used in high-speed optical backbone infrastructures for stable long-term transmission.
Ensures reliable high-bandwidth communication between core network nodes.
Applies to enterprise-level high-speed local and wide area networks.
Supports fast and stable data transmission across organizational systems.
Used in advanced telecom optical transmission environments.
Provides stable performance for modern communication backbone systems.
Supports next-generation fiber access and distribution systems.
Ensures efficient signal delivery in high-speed fiber-to-the-x networks.
