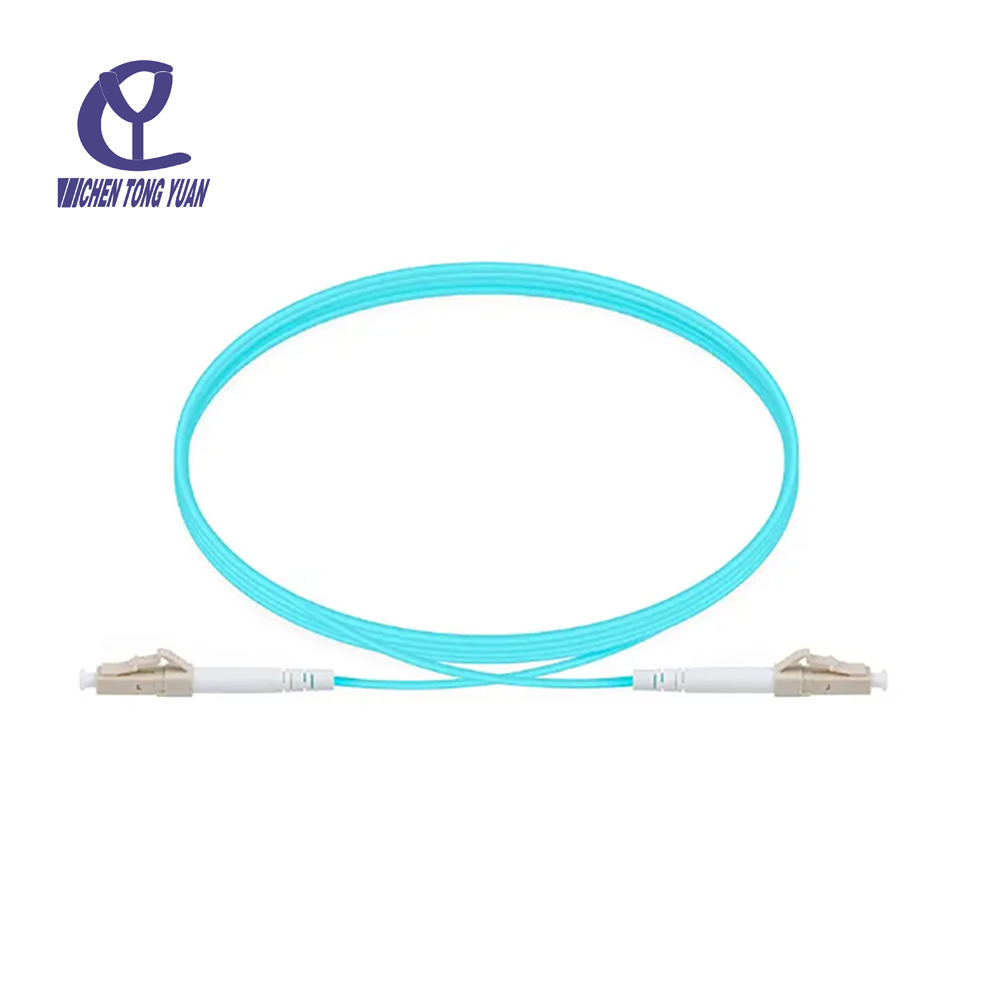

The OM3 simplex patch cord is a multimode 50/125 fiber cable designed for high-speed optical transmission. It is widely used in data centers, LAN networks, and telecom systems, providing stable connectivity for high-bandwidth applications and modern communication infrastructure.
Cytech
Product Description
The OM3 simplex patch cord is optimized for high-bandwidth communication systems, supporting efficient signal transmission in data centers, enterprise networks, and high-speed LAN environments.
The OM3 simplex patch cord is designed for high-bandwidth optical networks such as data center interconnections.
Ensures stable and efficient signal performance in high-speed systems.
Built for long-term use in demanding network environments.
Maintains reliable performance under different operating conditions.
Supports PC, UPC, and APC polishing for high-quality optical connections.
Meets Telcordia GR-326-CORE, TIA/EIA, and IEC standards.
| Pigtail Connector | PC(SM) | UPC(SM) | APC(SM) | MM |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Insection Loss (dB) | ≤0.2 (max≤0.3) | |||
| Repeatability (dB) | ≤0.1 | |||
| Durability (1/Matings) | ≥500 | |||
| Operation Temperature (°C) | -25~+70 | |||
| Tensile Strength(N) | ≥70 (Φ3.0), ≥50 (Φ2.0) | |||
| Fiber | 9/125um, 50/125um,62.5/125um,ect | |||
| Diameter | 0.9mm, 2.0mm, 3.0mm etc | |||
| Cable Material | PVC, LSZH | |||
| Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc | |||
Ideal for high-density, high-speed optical interconnections.
Supports enterprise-level network infrastructure.
Used in high-bandwidth communication systems.
Applied in measurement and testing environments.
Supports modern fiber access networks.
