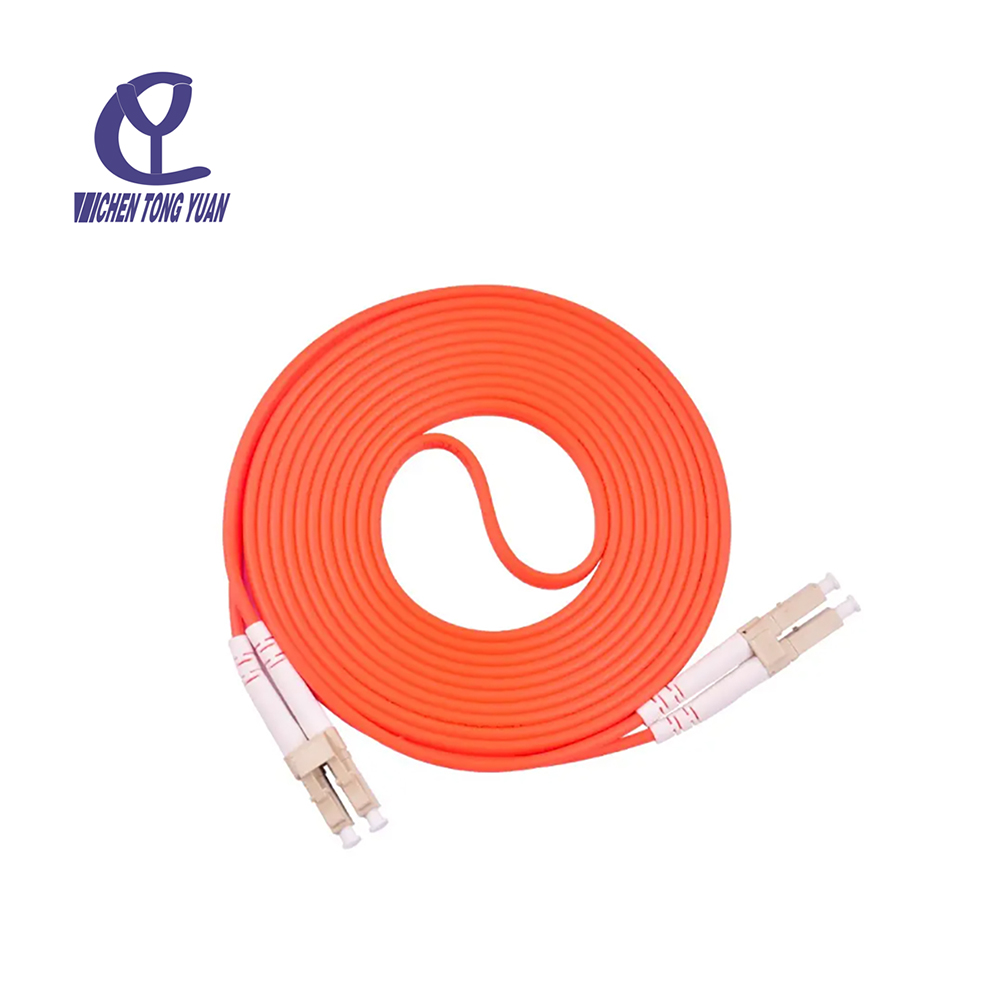

The OM1 duplex patch cord is a multimode 62.5/125 dual fiber cable designed for legacy optical communication systems. It is widely used in traditional LAN networks, office communication systems, and basic telecom infrastructure, providing stable and cost-effective connectivity for low-speed applications.
Cytech
Product Description
The OM1 duplex patch cord is designed for dual-fiber transmission in traditional multimode networks, providing stable performance for low-speed and legacy communication systems.
The OM1 duplex patch cord ensures reliable operation in traditional multimode environments.
Ideal for basic infrastructure and non-high-speed applications.
Supports standard duplex communication for legacy systems.
Built for long-term use in conventional network environments.
Ensures stable signal transmission in short-distance networks.
Meets Telcordia GR-326-CORE, TIA/EIA and IEC standards.
| Pigtail Connector | PC(SM) | UPC(SM) | APC(SM) | MM |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Insection Loss (dB) | ≤0.2 (max≤0.3) | |||
| Repeatability (dB) | ≤0.1 | |||
| Durability (1/Matings) | ≥500 | |||
| Operation Temperature (°C) | -25~+70 | |||
| Tensile Strength(N) | ≥70 (Φ3.0), ≥50 (Φ2.0) | |||
| Fiber | 9/125um, 50/125um,62.5/125um,ect | |||
| Diameter | 0.9mm, 2.0mm, 3.0mm etc | |||
| Cable Material | PVC, LSZH | |||
| Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc | |||
Used in traditional office and enterprise network systems.
Supports low-speed optical communication systems.
Used for internal structured cabling connections.
Applied in basic measurement and laboratory systems.
Used in older fiber distribution systems.
