GYTA
Cytech
Product Description

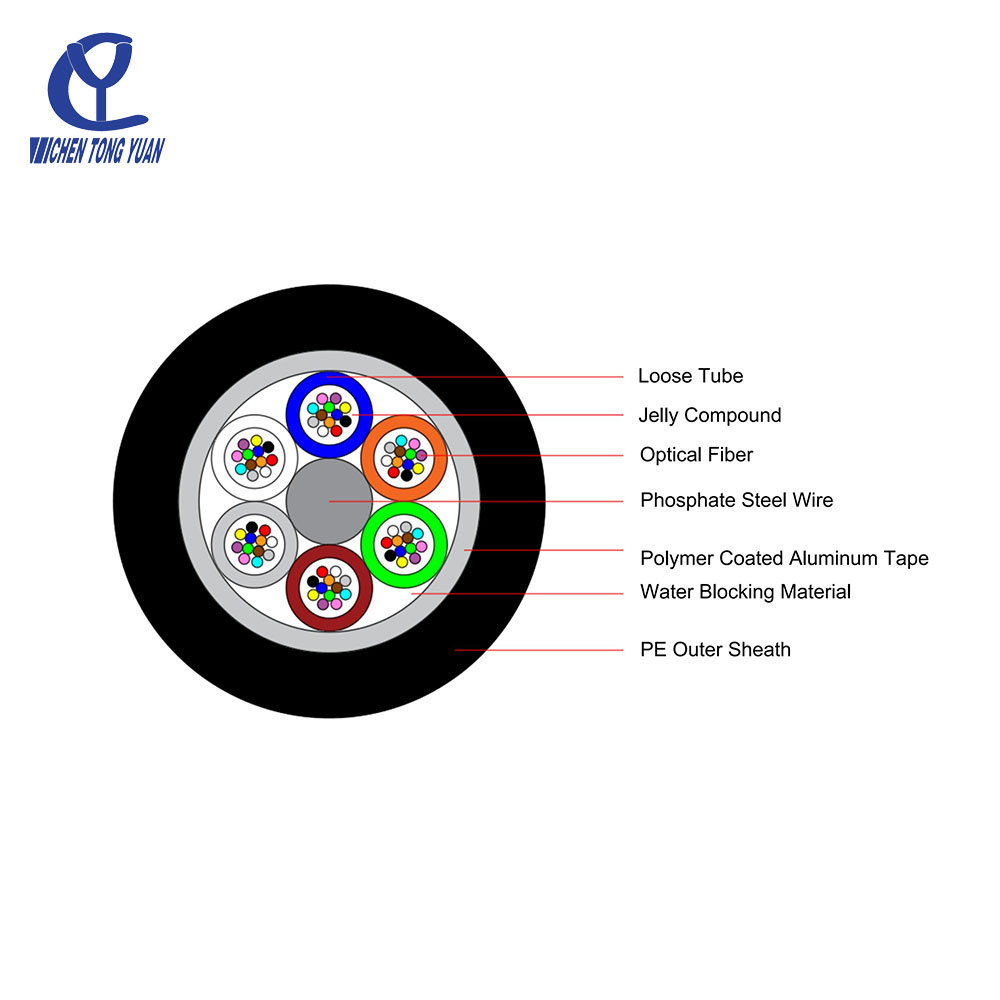

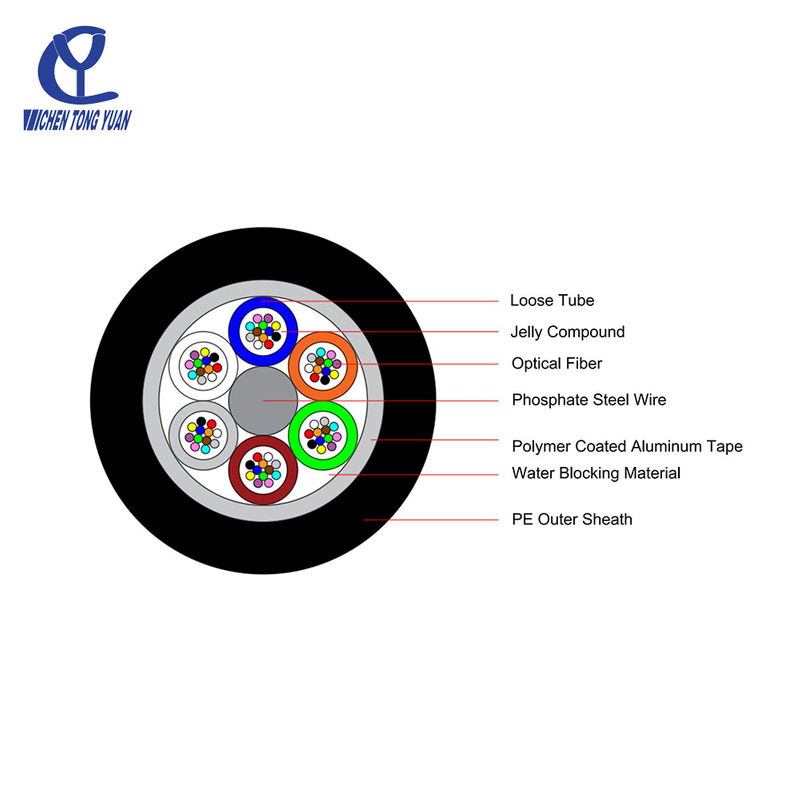

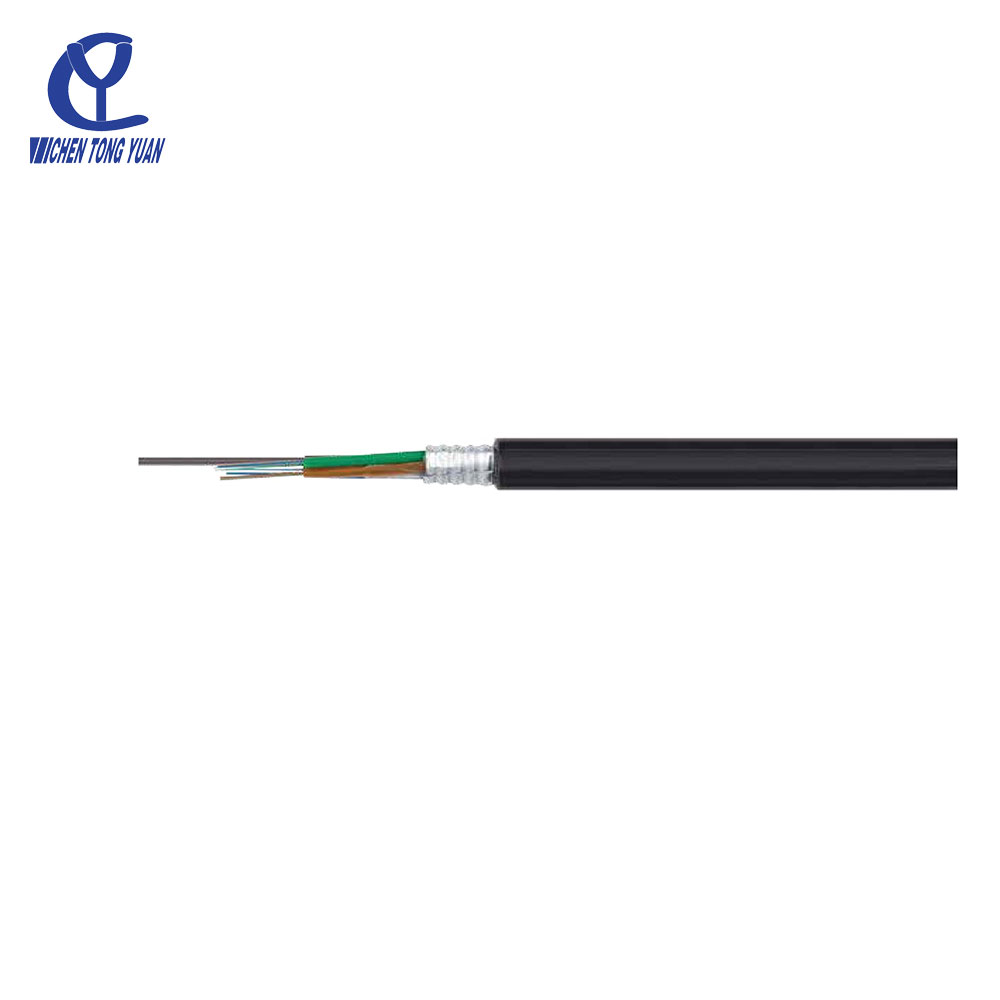

The GYTA fiber optical cable is an outdoor communication cable featuring a loose tube stranded structure with metal strengthening member. It is protected by an aluminum-polyethylene bonded sheath, providing enhanced mechanical protection for fiber transmission.
This design ensures reliable performance in outdoor environments, especially where additional structural protection is required.
Provides enhanced mechanical protection and improves cable durability.
Ensures stable fiber performance and reduces stress during installation.
Prevents moisture ingress and protects internal fiber components.
Offers reliable structural support and improves tensile performance.
Maintains long-term durability under outdoor environmental exposure.
Applications:Long-distance communication,inter-office communication
Laying method:pipeline, overhead
Working temperature:-40℃~+60℃；
Bend Radius: Static 10 times the cable diameter,
Dynamic 20 times the cable diameter.
IEC 60794-1、YD/T 901
| Fiber count | Cable Diameter(mm) | Cable Weight(KG/KM) | Max.tensile strength(N) | Max.Crush resistance(N/100m) | ||
| RTS | MAT | Short Term | Long Term | |||
| 2-30 | 8.9 | 72 | ≥1500 | ≥600 | ≥1000 | ≥300 |
| 32-60 | 9.4 | 79 | ||||
| 62-72 | 10.0 | 100 | ||||
| 74-96 | 11.2 | 120 | ||||
| 98-120 | 12.5 | 144 | ||||
| 122-144 | 13.7 | 170 | ||||
| 146-216 | 13.8 | 172 | ||||
| 218-300 | 15.6 | 214 | ||||
Packaging Details: Packed on drums;
Drums length: 1KM,2KM, 3KM or 4KM, as per buyers’ request
Delivery detail: 15 days
Application
Used in outdoor telecom systems requiring stable signal transmission.
Provides reliable connectivity between communication facilities.
Suitable for underground conduit systems requiring protected cable structure.
Can be installed in overhead applications with proper support.
Installation and maintenance
Avoid impact or excessive bending to protect the internal structure.
Maintain appropriate pulling force to prevent fiber damage.
Static: 10 × cable diameter
Dynamic: 20 × cable diameter
Supports both duct and overhead installation methods.
Regular checks help ensure long-term stability and performance.
Advantages
Aluminum bonded sheath improves resistance to external stress.
Loose tube structure reduces fiber strain during operation.
Water blocking design ensures durability in outdoor environments.
Combines metal reinforcement with stable cable design.
Designed for over 30 years of reliable telecom use.
