Product Introduction of Outdoor Optical Cable Fiber GYFXTY

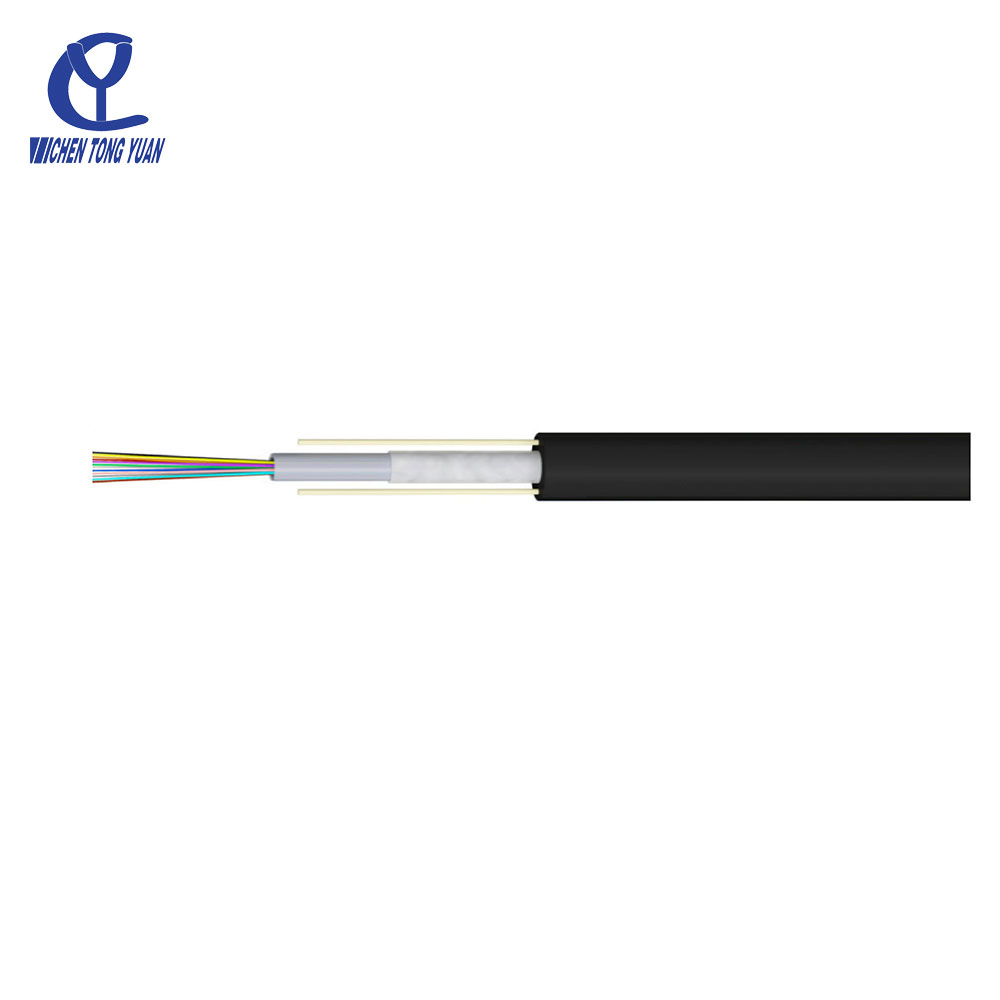

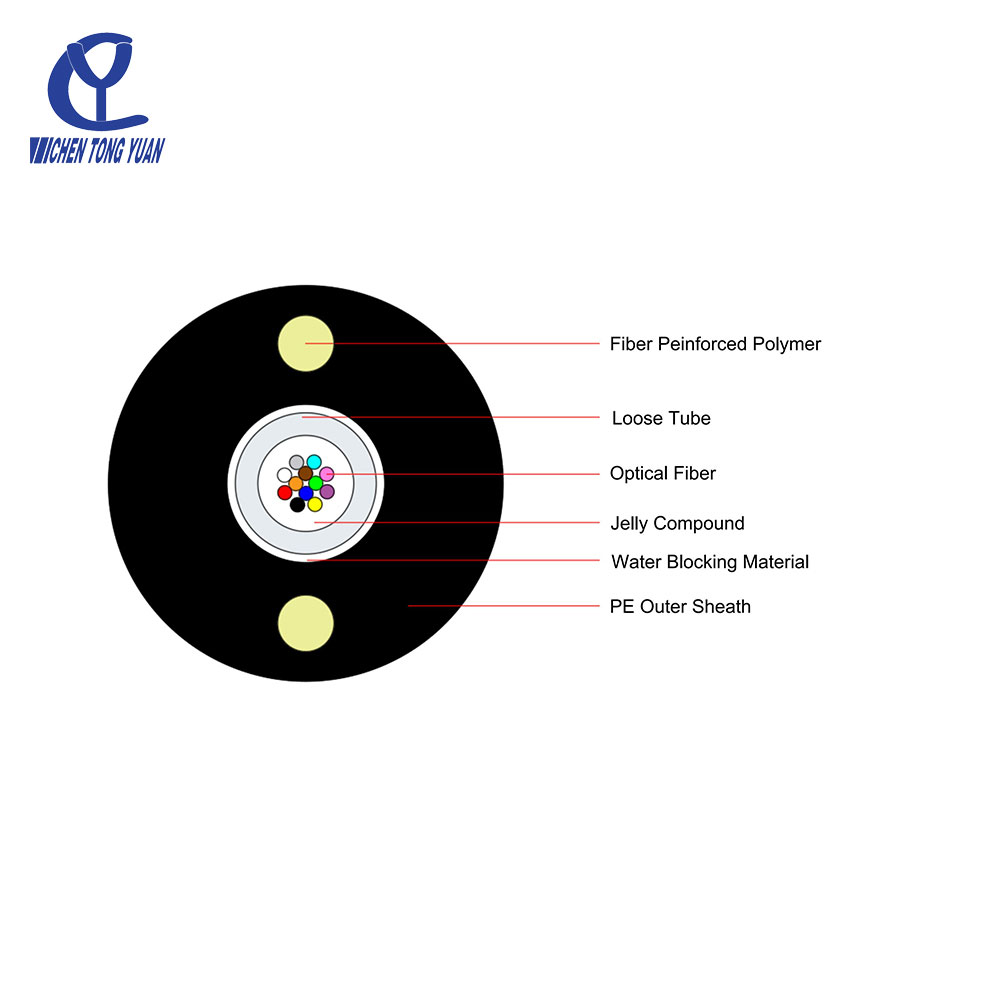

The GYFXTY cable is constructed by inserting 250um fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The loose tube is provided with a water blocking material to ensure the longitudinal blocking of the cable,and two parallel glass fiber reinforced plastic(FRP) are placed on both sides to extrude the polyethylene sheath to form a cable.

Product Features of Optical Cable Fiber for Outdoor Use

1.Excellent mechanical and environmental performance for outdoor fiber optic cable

2.Loose tube with high hydrolysis resistance for long service life

3.Filled with protective compound for waterproof fiber optic cable performance

4.Dual FRP reinforcement ensures strong tensile strength for aerial fiber cable

5.UV-resistant PE sheath suitable for harsh outdoor conditions

6.Compact structure for easy installation in duct fiber optic cable systems

Product Performance of GYFXTY Fiber Optic Cable

• Applications: long-distance fiber optic communication, inter-office fiber cable connection, and outdoor network deployment

• Installation Method: aerial fiber optic cable installation and pipeline fiber cable laying

• Working Temperature: -40℃ to +60℃

• Bending Radius:

• Static: 12.5 × cable diameter

• Dynamic: 25 × cable diameter

Product Standard

IEC 60794-1 fiber optic cable standard, YD/T 769

Product Parameter of Optical Cable Fiber GYFXTY

Product Packing& Delivery

Packaging Details: Packed on drums;

Drums length: 1KM,2KM, 3KM or 4KM, as per buyers’ request

Delivery detail: 15 days

Application of GYFXTY Optical Cable Fiber

1.Long-Distance Communication Networks

The GYFXTY optical cable fiber is used in long-distance transmission for stable signal delivery in telecom backbone networks.

2. Inter-Office Fiber Connections

It is suitable for inter-office communication, ensuring reliable data transfer between network facilities.

3.Outdoor Telecom Network Deployment

This outdoor fiber optic cable is widely applied in outdoor telecom infrastructure and access networks.

4.Duct and Pipeline Network Systems

It is commonly used in underground duct and pipeline systems where compact and lightweight cables are required.

How to Install and Maintain GYFXTY Optical Cable Fiber

◇Cable Handling Before Installation

Handle the GYFXTY fiber optic cable carefully during transport and laying. Avoid sharp bending, twisting, or impact to protect the loose tube and FRP strength members.

◇Tension Control During Installation

Maintain proper pulling tension and do not exceed the rated strength (≥1500N short-term) to avoid fiber damage in the optical cable fiber structure.

◇Bending Radius Compliance

Follow the minimum bending radius requirements:

• Static: 12.5 × cable diameter

• Dynamic: 25 × cable diameter

This ensures stable transmission performance.

◇Aerial and Duct Installation

The GYFXTY fiber optic cable supports both aerial and duct installation. Avoid friction points and ensure smooth cable routing.

◇Sealing and Maintenance

Seal cable ends properly during installation to maintain the water blocking fiber optic cable performance. Conduct regular inspections for mechanical damage or sheath issues.

Advantages of GYFXTY Optical Cable Fiber

1. Lightweight and Easy to Handle

The compact structure makes transportation and installation more efficient.

2.Strong Tensile Performance

Dual FRP reinforcement improves strength for outdoor deployment.

3. Reliable Water Blocking Design

The filled loose tube protects fibers from moisture ingress.

4.UV Resistant Outer Sheath

The PE jacket ensures durability under sunlight exposure.
